The Glazed Roof Tile Roll Forming Machine marks an important step forward in today’s roofing production. It allows quick and effective creation of metal tiles. These tiles copy the traditional look of old glazed ceramic tiles. At the same time, they deliver better strength and lasting quality.
What is a Glazed Roof Tile Roll Forming Machine?
A glazed roof tile roll forming machine serves as special industrial gear. It changes flat metal coils into shaped roofing sheets with a stepped, tile-style design. Such machines create glazed tile roof sheet roll forming machine results. These imitate ancient clay tiles yet rely on light metal bases. That makes them perfect for current building projects.
These systems often come from areas with strong skills in metal shaping, like China. They handle many different profiles. Some versions feature the china glazed tile roof sheet roll forming machine setups. Those focus on large output levels and exact results.
Main traits cover automatic uncoiling, step-by-step rolling, pressing to form steps, and hydraulic cutting. The final items show graceful curved steps. Those steps give nice visual charm along with practical water flow.
Working Principle of Glazed Roof Tile Roll Forming Machines
The process uses a steady cold-forming method. No heat gets added, so the material stays in good condition.
- Material Feeding: Metal coils (usually galvanized steel, PPGI, or color-coated sheets with thicknesses of 0.3-0.8 mm) go onto a decoiler. It unwinds the material in a smooth way.
- Guiding and Leveling: The sheets move through feeding guides and straighteners. This keeps everything straight and even.
- Roll Forming: The main part uses several roller stations (commonly 13-22 stations). They slowly shape the sheet into the needed form. Rollers come from tough steel with chrome plating. They form the material very accurately.
- Step Pressing: A hydraulic pressing setup makes the special stepped “glaze” pattern. It creates sections at equal distances for the tile look. This part sets it apart from regular corrugated machines.
- Cutting: After forming, hydraulic cutters cut the sheets to set lengths. They do this with good precision (tolerances around ±1 mm).
- Output: The shaped tiles gather on run-out tables or automatic stackers.
The whole line runs through PLC control systems. These handle setting changes. As a result, the work stays steady with very little waste. Production speeds usually fall between 4-10 meters per minute. It depends on the setup.
Key Features and Components
Glazed roof tile roll forming machine systems use strong parts for steady work and good performance.
- Decoiler: Manual or hydraulic type. It holds 5-10 ton coils.
- Rollers and Shafts: Made from Cr12 or 45# steel. They get quenched and chrome-coated. This gives long life and smooth shaping.
- Frame Structure: Heavy-duty welded H-beam steel (e.g., 350-400 mm). It provides firm support during nonstop use.
- Hydraulic System: It drives the pressing and cutting actions. Blades have high hardness (50-65 HRC).
- Control System: PLC with touchscreen controls. Users set length, quantity, and speed easily.
- Drive Mechanism: Chain or gearbox transmission. It delivers steady power.
Many models include extra options. Examples are film covering to protect surfaces or automatic stackers for easier handling.
Advantages of Using a Glazed Roof Tile Roll Forming Machine
These machines bring clear gains compared to old tile-making ways.
- Aesthetic Versatility: They make tiles with classic patterns in different colors. This gives graceful and fine looks. Such tiles fit well for homes, shops, and villa builds.
- Durability and Performance: Metal tiles stand up to frost, heat, hail, and wind. They stay fully waterproof thanks to built-in runoff paths. They also show strong resistance to rust.
- Lightweight Design: These tiles weigh much less than clay or cement ones. So they lower the load on structures while keeping solid strength.
- Efficiency: Strong automation cuts down on workers needed. It lowers waste too and allows big production amounts.
- Environmental Benefits: They take the place of resource-heavy traditional tiles. This saves land and raw materials.
- Low Maintenance: The products need little care. They last a long time and resist fire well.
Types and Customization Options
The market has many setups to match different demands.
Standard Single-Layer Models
They center on simple stepped tile profiles.
Double-Layer Variants
These mix glazed tile forming with other roofing shapes. That allows several uses on one machine.
High-Speed Designs
They reach quicker outputs with better transmission systems.

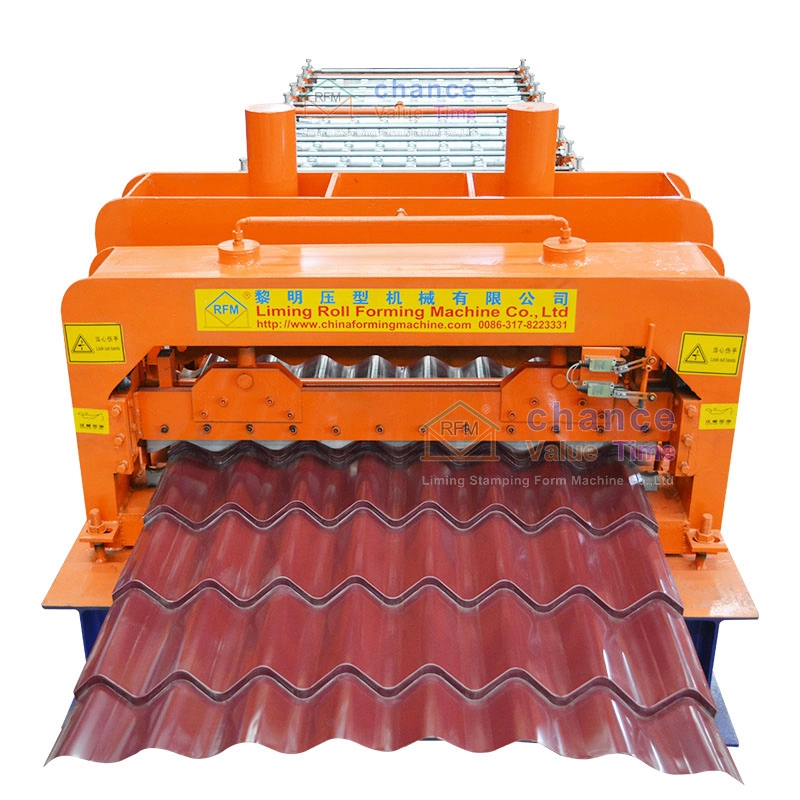

Custom glazed roof tile roll forming machine choices let users adjust to special profiles, step depths, and sizes. In the same way, customized glazed tile roof sheet roll forming machine arrangements fit material kinds, coil widths, and voltage needs. Profiles can copy Mediterranean, Spanish, or Asian looks. This keeps good match with building styles.
Applications in Modern Construction
Glaze tile roof sheet roll forming machine products work well in many places. Examples include factories, warehouses, supermarkets, hotels, exhibition halls, and homes. Their classic but fresh style boosts outside appeal. At the same time, they give solid defense from weather.
In areas that value lasting and green roofing, these machines help move toward metal options. Those options mix old charm with new ideas.
Considerations for Selecting a Glazed Roof Tile Roll Forming Machine Company
When checking choices, focus on manufacturers with solid skills in exact engineering and good after-sales help. Important points cover roller quality, system automation, and fit for custom needs.
A glazed roof tile roll forming machine company needs to show steady results in worldwide sales. For people looking for glazed tile roof sheet roll forming machine in china answers, trusted makers bring up-to-date tech and personal adjustments.

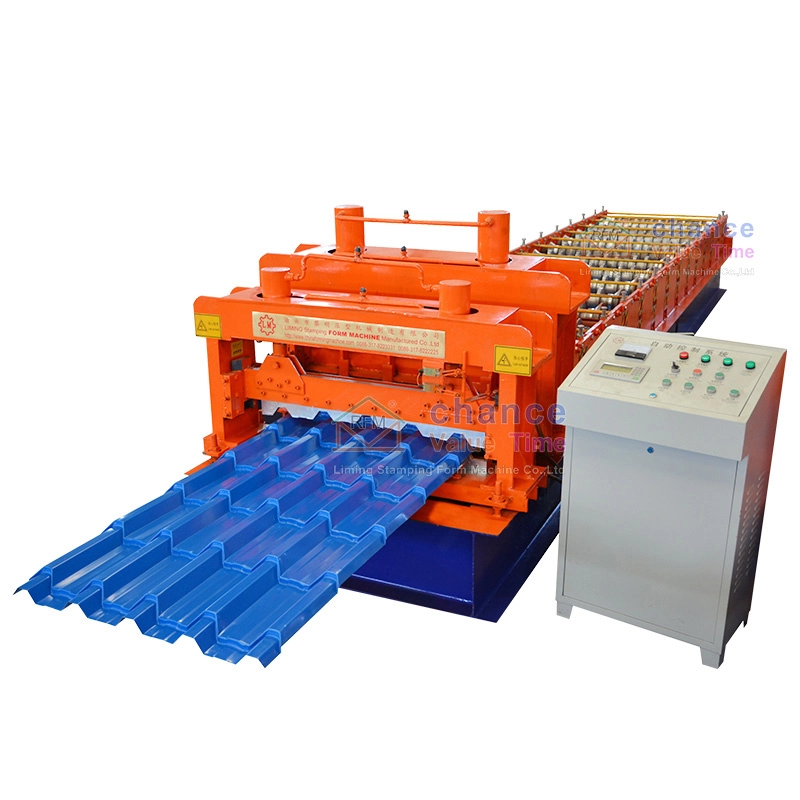

Glazed roof tile roll forming machine manufacturer picks gain from companies that stress strong parts and smart designs. Likewise, glazed tile roof sheet roll forming machine manufacturers china supply good-value, top-quality gear. A trusted glazed tile roof sheet roll forming machine supplier makes sure the equipment fits smoothly into work lines.
FAQ
What materials are compatible with a glazed roof tile roll forming machine?
These machines typically process galvanized steel, pre-painted steel (PPGI), and aluminum coils in thicknesses ranging from 0.3 mm to 0.8 mm.
How does the step pressing system work in a glazed tile roof sheet roll forming machine?
The hydraulic pressing unit forms equal-distance steps after initial rolling. This creates the special glazed tile pattern. It improves looks and helps water drain.
What production speeds can be achieved with a china glazed tile roof sheet roll forming machine?
Speeds generally range from 4-10 meters per minute. High-speed models use better gearbox drives. This gives faster work without losing quality.
Can a custom glazed roof tile roll forming machine produce unique profiles?
Yes. Customization lets changes to roller stations, step depths, and full designs. This matches exact building needs.
What maintenance is required for a glazed roof tile roll forming machine?
Regular checks on rollers, hydraulic parts, and oil keep it working long. Chrome-coated pieces cut down wear. They also stretch service times.
Are glazed tiles produced by these machines environmentally friendly?
They bring benefits over old clay tiles. They use recyclable metal, cut down resource use, and give roofing that lasts long with little care.
Partner with a Leading Manufacturer, Supplier, and Factory
For businesses seeking reliable, high-performance equipment in the roofing sector, Hebei Liming stands out as an experienced manufacturer, supplier, and factory with 28 years of specialization in roll forming technology. Located in Hebei Province, China, the company delivers precision-engineered glazed roof tile roll forming machines and related systems, backed by global export experience to markets across Asia, Africa, Europe, and the Americas. Contact Hebei Liming for tailored solutions that enhance production efficiency and product quality.
