In metal fabrication, the coil slitting machine line stands as a cornerstone of efficiency, transforming wide coils of steel, aluminum, or stainless steel into precise, narrow strips ready for roll forming, stamping, or welding. For businesses searching coil slitting machine line, China slitting line machine, or steel slitting line machine, the goal is clear: secure high-performance equipment at the lowest possible cost.
Sourcing directly from a coil slitting machine line wholesale factory—especially one specializing in high speed precision slitting line systems or China customized high precision coil slitting line—can reduce acquisition costs by 30–50% compared to distributors. This guide unpacks the technology, process, and procurement strategies behind slitting line machine manufacturers to help you make smarter, cost-effective decisions.
The Core of a Coil Slitting Machine Line: How It Works
A coil slitting machine line is more than a cutter—it’s a fully integrated production system. From decoiling to recoiling, every stage is engineered for speed, accuracy, and minimal waste. Whether you’re processing cold-rolled steel or pre-painted coils, understanding the mechanics is key to selecting the right China coil slitting line manufacturers solution.

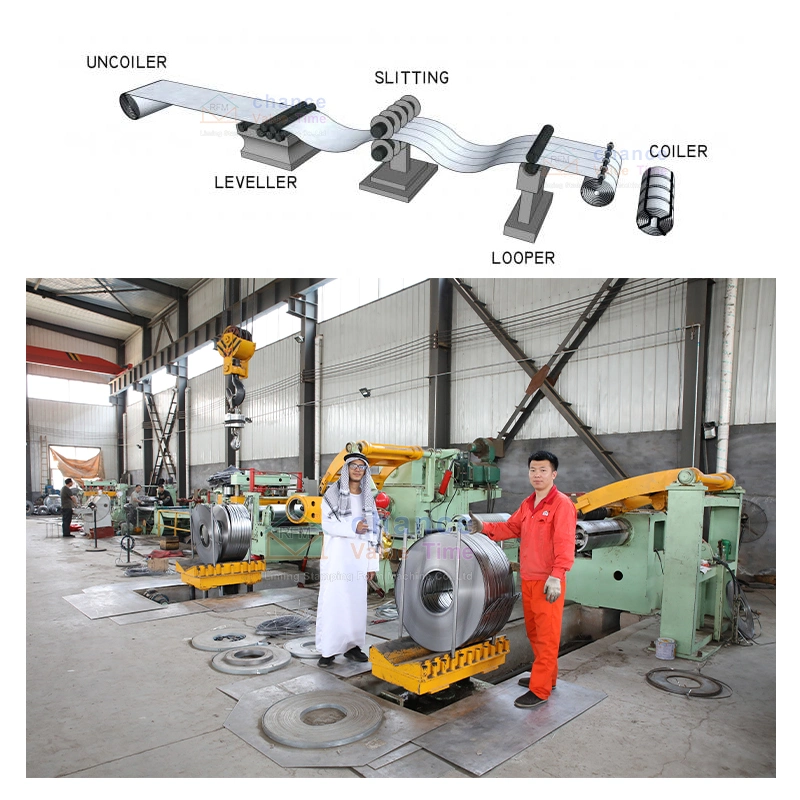

Essential Components of a Modern Slitting Line
- Hydraulic Decoiler Holds coils weighing 5–35 tons with expandable mandrels (508mm or 610mm ID standard). Auto-centering and braking systems prevent coil shift during high-speed unwinding.
- Pinch Roll & Leveler Feeds material into the slitter with consistent tension. Five- or seven-roll levelers eliminate coil set and edge wave, critical for high speed precision slitting line performance.
- Slitting Unit The heart of the line. High-rigidity arbors support 10–30 pairs of rotary knives (D2 or carbide-tipped). Clearance and overlap are adjustable to 0.01mm, ensuring burr-free edges even at 300 m/min.
- Loop Control System Vertical or horizontal loopers store material, enabling continuous operation during coil changes. Essential for slitting line machine manufacturers targeting 24/7 production.
- Tension Unit & Separator Pneumatic or magnetic tension pads maintain strip alignment. Separator discs prevent nesting and scratching—vital for galvanized or coated materials.
- Recoiler with Separator Shaft Expands hydraulically to grip slit strips. Over-arm separators and pusher plates ensure clean, tight recoiling up to 30 tons.
- Edge Trim & Scrap Management Double-edge trimmers remove 10–50mm per side. Scrap winders or choppers compact waste for easy recycling, reducing material loss to under 1%.
Modern China customized high precision coil slitting line systems integrate Siemens or Mitsubishi PLCs, touchscreen HMIs, and remote diagnostics—features once exclusive to premium European brands, now standard in competitive coil slitting machine line wholesale factory offerings.
The Slitting Process: Precision in Motion
Slitting is a balance of speed, tension, and blade geometry. Here’s how a steel slitting line machine executes a flawless cut:
- Step 1: Coil Loading – Operator or automated crane loads coil onto decoiler. Laser sensors detect OD/ID and width.
- Step 2: Threading – Auto-threading guides material through pinch rolls and leveler.
- Step 3: Slitting – Material passes between upper and lower knife arbors. Knife penetration depth is set via CNC (0.05–0.3mm overlap typical).
- Step 4: Strip Separation – Rubber or nylon rings isolate strips, preventing edge damage.
- Step 5: Recoiling – Tension is ramped gradually to avoid telescoping. Final strips are banded and unloaded.
A well-tuned high speed precision slitting line achieves:
- Width tolerance: ±0.05mm
- Camber: <1mm/m
- Burr height: <0.03mm
- Line speed: 100–400 m/min (material-dependent)
Types of Slitting Lines: Match the Machine to Your Material
| Type | Thickness | Speed | Best For |
|---|---|---|---|
| Light Gauge | 0.1–1.5mm | 300–600 m/min | Foil, electronics, packaging |
| Medium Gauge | 0.5–6mm | 150–300 m/min | Automotive, appliances |
| Heavy Gauge | 3–16mm | 60–150 m/min | Construction, shipbuilding |
| Ultra-Precision | 0.3–3mm | 200–400 m/min | Aerospace, medical tubing |
China slitting line machine suppliers often offer modular designs—start with a base coil slitting machine line and upgrade with double slitters, turret heads, or inline inspection later.
Why Buy Direct from a Coil Slitting Machine Line Wholesale Factory?
Purchasing through agents adds 20–40% in margins. Going direct to a slitting line machine manufacturers facility offers:
- Lower Base Price: A 1600mm high speed precision slitting line might cost $180,000 ex-factory vs. $280,000 via reseller.
- Customization Included: Voltage (220V/380V/460V), knife material, or automation level adjusted at no premium.
- Faster Lead Time: 10–14 weeks vs. 16–20 through distributors.
- Direct Support: Factory engineers assist with installation, training, and spare parts.
Pro tip: Request FOB Tianjin terms and consolidate spare knives/spacers in the same container to save 15% on freight.
Step-by-Step: How to Source and Save
- Define Specs List coil weight, width, thickness, material grade, and required strip count. Example: “25-ton coil, 1250mm width, 0.5–3mm HR steel, 12 strips.”
- Shortlist China Coil Slitting Line Manufacturers Focus on factories with:
- ISO 9001 & CE certification
- 100+ installed lines globally
- In-house knife grinding and heat treatment
- Request Technical Quotes Ask for:
- Layout drawings
- Knife life data (tons per grind)
- Power consumption (kW)
- Spare parts list (1-year supply)
- Factory Audit (Virtual or On-Site) Verify CNC machining centers, stress-relief ovens, and test bays. A true coil slitting machine line wholesale factory runs full-speed trials before shipment.
- Negotiate Smart
- Bundle training (3–5 days on-site)
- Secure 2% spare parts credit
- Lock price with 30% deposit, balance via L/C
- Logistics & Installation Use freight forwarders familiar with heavy machinery. Budget $8,000–$12,000 for a 40ft HQ container. Allow 2 weeks for foundation and alignment.
Real-world savings: A Midwest U.S. fabricator cut costs from $420,000 (distributor quote) to $265,000 (direct) on a 6mm steel slitting line machine—a 37% reduction.
Maintenance Secrets for Maximum Uptime
- Daily: Check oil levels, clean scrap from pit, inspect knife edges.
- Weekly: Measure knife clearance, calibrate tension sensors.
- Monthly: Regrind knives (every 1,500–2,500 tons), replace felt pads.
- Annually: Full alignment check, gearbox inspection.
Prolong knife life by 30% using coolant mist on thick materials. Store spares in climate-controlled rooms to prevent corrosion.
Future-Proofing: Trends in Slitting Technology
- AI Tension Control: Auto-adjusts based on material elasticity.
- Quick-Change Cassettes: Swap knife sets in <15 minutes.
- Inline Edge Profiling: Rounds or bevels strip edges during slitting.
- IoT Monitoring: Predicts bearing failure 72 hours in advance.
China customized high precision coil slitting line factories are rapidly adopting these—often at half the cost of European equivalents.
Final Thoughts
Investing in a coil slitting machine line is about more than equipment—it’s about controlling your supply chain, reducing waste, and scaling output. By partnering directly with a proven coil slitting machine line wholesale factory, you gain cost control, customization, and confidence in every cut.
FAQ
What’s the difference between a slitting line and a cut-to-length line?
A coil slitting machine line cuts coils lengthwise into narrow strips. A cut-to-length line shears across the width to produce sheets.
Can one China slitting line machine handle both steel and aluminum?
Yes, with proper knife material (carbide for aluminum, HSS for steel) and adjustable clearance settings.
How narrow can a high speed precision slitting line cut?
Down to 8mm with specialized tooling and strip support systems.
What’s the typical ROI timeline?
12–24 months, depending on throughput and material savings. High-volume shops often see payback in under 12 months.
Do slitting line machine manufacturers offer remote commissioning?
Many now provide VR-assisted startup and cloud-based diagnostics.
How do I reduce edge burr on thick coils?
Use deeper knife penetration, slower speed (80–120 m/min), and periodic knife rotation.
