The light gauge steel frame roll forming machine stands as essential technology in prefabricated construction, transforming galvanized steel coils into precise framing elements such as studs, tracks, joists, and trusses via sophisticated cold-forming methods. These machines deliver high-volume, accurate production that supports sustainable practices through minimal material waste and recyclable outputs.
Introduction to Light Gauge Steel Frame Roll Forming Machine Technology
The light gauge steel frame roll forming machine applies progressive cold rolling to convert flat steel strips into complex profiles with consistent dimensional accuracy. This process meets rigorous demands for speed, structural integrity, and eco-friendly building in light steel framing applications.
Key Components of a High-Quality Light Gauge Steel Frame Roll Forming Machine
Advanced light gauge steel frame roll forming machine systems feature integrated, durable components optimized for continuous operation.
Decoiler and Material Feeding System
Hydraulic decoilers with automatic expansion and tension control handle coils up to several tons, providing stable feeding without coil damage.
Leveling and Straightening Unit
Multi-roll levelers remove coil set and edge bow, ensuring perfectly flat material for precise forming in the light gauge steel frame roll forming machine.
Punching and Notching Mechanisms
Multi-station hydraulic punching systems execute programmable patterns including dimple holes, service openings, web notches, chamfers, and fixing tabs with high repeatability.
Roll Forming Stations
Progressive stations, typically 12 to 17 or more, utilize hardened alloy rollers (often SKD11 or equivalent) quenched to high hardness for superior wear resistance and profile consistency.
Cutting and Shearing System
Servo-driven or hydraulic flying/shear cutting achieves clean, burr-free ends at exact lengths while maintaining high line speeds.
Control and Automation System
Industrial PLCs paired with large touchscreen interfaces (up to 21 inches) manage full automation, including real-time monitoring and error diagnostics.
Essential Performance Features of the Best Light Gauge Steel Frame Roll Forming Machine
Elite light gauge steel frame roll forming machine models excel in output capacity, precision engineering, and operational flexibility.
High Production Speed and Efficiency
Top configurations deliver line speeds of 30–48 meters per minute (or up to 2150–2700 meters per hour in optimized modes), supporting outputs from 350–900 meters per hour standard to higher peaks.
Precision and Accuracy Standards
Forming and punching tolerances frequently achieve ±0.5mm or better, with servo positioning ensuring exact feature placement for assembly-ready components.
Material Versatility and Thickness Range
Machines process galvanized or zinc-alum steel (G300–G550 yield) from 0.4–2.5mm thick (commonly 0.6–1.6mm for framing), with coil widths up to 300mm or more.
Automatic Model Change Capability
Intelligent multi-profile designs enable rapid switching among specifications like C75, C89, C100, C140, C150, or wider ranges (e.g., 63–250mm or 200–350mm), minimizing changeover downtime.
Advanced Automation and Control Systems in Light Gauge Steel Frame Roll Forming Machine
State-of-the-art light gauge steel frame roll forming machine incorporates smart technologies for streamlined, intelligent production.
PLC and Touch Screen Integration
Windows-based or dedicated industrial PCs with large touchscreens facilitate intuitive operation, recipe storage, and comprehensive safety protocols.
Software-Driven Optimization
CAD/CAM integration imports design files directly, optimizes nesting to reduce scrap (often below 1%), generates production reports, and supports automatic part labeling or inkjet marking.
Durability and Reliability Enhancements
Components such as servo motors (up to 14kW+), reinforced frames, and vacuum heat-treated tools extend operational life under heavy-duty conditions.
Technical Specifications and Engineering Standards in Light Gauge Steel Frame Roll Forming Machine
Professional-grade light gauge steel frame roll forming machine adheres to stringent specifications that define performance benchmarks.
Power and Drive Configuration
Main servo or frequency-controlled drives (5.5–14kW typical) combined with hydraulic systems (7.5–11kW) ensure smooth, energy-efficient power transmission across stations.
Forming Process Parameters
Stations often number 16–20+, with individual reduction gearing or universal joint drives for synchronized roller movement and minimal profile distortion.
Tolerance and Quality Assurance
Industry-leading units maintain ±0.5–1mm overall tolerances, supported by inline inspection features and high-hardness tooling (HRC 58–62) for millions of cycles.
Real-World Applications of Components Produced by Light Gauge Steel Frame Roll Forming Machine
Profiles from a light gauge steel frame roll forming machine enable versatile, high-performance construction across sectors.

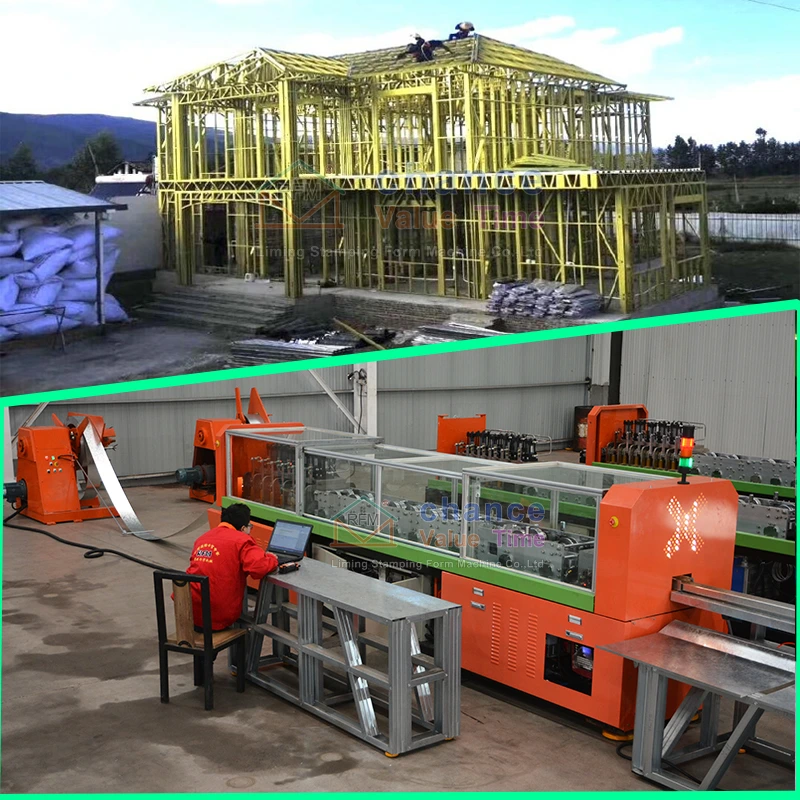

Residential Housing and Villas
Wall framing, roof trusses, and floor joists for single-family homes, multi-story villas, and low-rise developments up to three stories.
Modular and Prefabricated Construction
Volumetric modules, tiny homes, bathroom/kitchen pods, and transportable units benefit from off-site precision and rapid on-site assembly.
Commercial and Mid-Rise Structures
Office buildings, retail spaces, hotels, apartments (up to six stories), and mixed-use projects leverage open-span capabilities and fire resistance.
Floor and Roof Systems
Deep joist profiles (200–350mm) create lightweight, high-strength decks and trusses for reduced foundation loads in commercial and residential extensions.
Industrial and Specialized Buildings
Warehouses, agricultural facilities, recreational structures, and light industrial enclosures utilize corrosion-resistant, durable framing.
Benefits of Investing in a Premium Light Gauge Steel Frame Roll Forming Machine
Selecting an advanced light gauge steel frame roll forming machine generates measurable gains in efficiency and project outcomes.
- Superior Structural Performance: Components offer exceptional strength-to-weight ratios, resistance to warping, pests, and decay for extended service life.
- Accelerated Construction Timelines: Prefabricated, coded elements drastically cut on-site labor and erection time versus conventional methods.
- Material Efficiency and Sustainability: Near-zero waste production and fully recyclable steel align with green standards and lower embodied carbon.
- Adaptability to Complex Designs: Support for custom punching, varying profiles, and integration with design software accommodates intricate architectural and engineering requirements.
In summary, the premier light gauge steel frame roll forming machine merges precision mechanics, intelligent automation, versatile multi-profile capability, and robust specifications to empower efficient, high-quality light steel construction worldwide.
Frequently Asked Questions (FAQ)
What primary components does a light gauge steel frame roll forming machine produce?
It manufactures studs, tracks, joists, trusses, and specialized framing for walls, floors, and roofs in light steel structures.
Which building types benefit most from profiles created by a light gauge steel frame roll forming machine?
Residential villas, modular units, mid-rise apartments, commercial offices, retail facilities, and light industrial projects.
How does automatic model change enhance a light gauge steel frame roll forming machine?
It facilitates swift shifts between profiles (e.g., C89 to C150 or wider ranges), reducing setup time for diverse production runs.
What thickness range supports typical light gauge steel frame roll forming machine operations?
Common ranges cover 0.4–2.5mm (often focused on 0.6–1.6mm) in galvanized or high-strength steel for structural applications.
Why choose a multi-profile light gauge steel frame roll forming machine for production?
It offers broad flexibility across residential, commercial, modular, and specialized needs within a single, efficient platform.
