The roller shutter door roll forming machine acts as key equipment for making strong and reliable rolling shutter systems. These systems appear in shops, factories, and homes. Manufacturers use this special machine to turn galvanized steel coils or aluminum sheets into exact slats, panels, guide rails, and other parts. The work happens with good speed and steady results. Terms like shutter door roll forming machine or roller shutter machine for sale show up often in searches. This shows clear need for automatic tools that create even profiles for big production runs. A roller shutter door forming machine excels because it manages ongoing forming steps and keeps very close measurements. It becomes a main tool for companies that care about top-quality door production.
What Is a Roller Shutter Door Roll Forming Machine?
Definition of Roller Shutter Roll Forming Technology
A roller shutter door roll forming machine is special industrial gear built to make interlocking slats and main parts for full rolling shutter doors. The work starts with flat metal coils. Then it changes them into curved or straight shapes that roll up neatly into a small box. This machine stands apart from normal roll forming lines. It focuses on thin materials chosen for bendability, toughness, and rust protection.

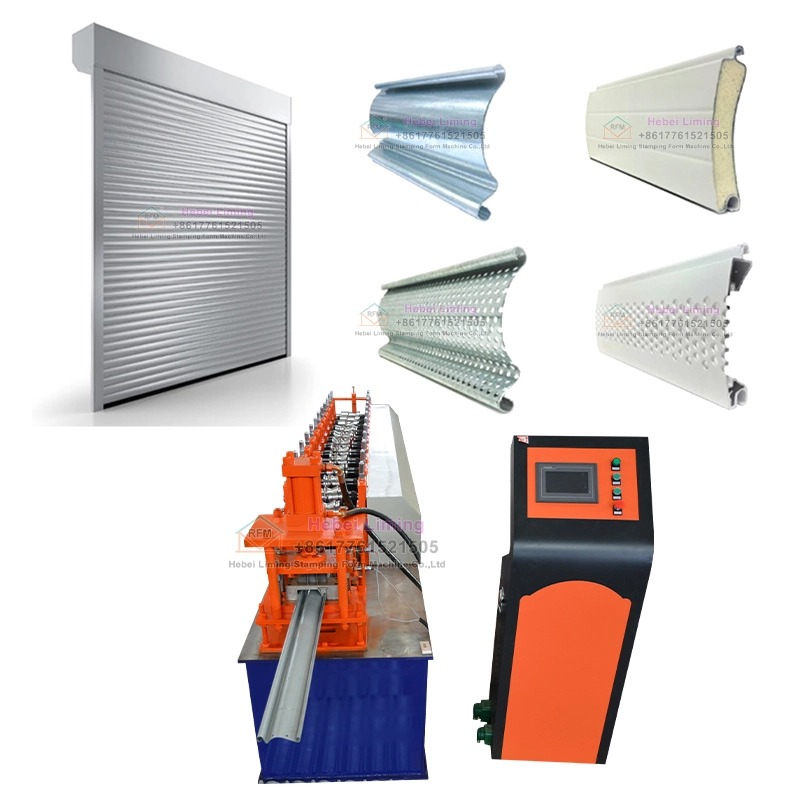

Types of Roller Shutter Profiles Produced
Main tasks focus on building door panels, bottom bars, and side guides. These pieces come together to create working security shutters. The shutter door roll forming machine usually handles several shutter kinds, such as:
- Flat roller shutter slats used in commercial storefronts
- Curved or arc-shaped slats for improved rolling performance
- Perforated shutter slats that allow airflow and visibility
- Insulated slats for thermal and acoustic protection
Such options let manufacturers meet various needs for safety, air flow, and building design in different areas.
Automatic Roller Shutter Roll Forming Systems
An automatic rolling shutter machine combines servo motors, hydraulic punching parts, and programmable control units. Automation cuts down on hand work. It supports steady output from coil loading all the way to stacking ready parts. Newer roller shutter door making machine setups can also have embossing tools, anti-wind hook stations, and rib-forming devices. These extras boost strength and improve looks.
How Does Roller Shutter Door Roll Forming Machine Work?
The roller shutter door roll forming machine runs in a steady, automatic way. It shapes metal step by step with care. The process begins at the decoiler. There, a motorized or hydraulic uncoiler sends the coil into the line smoothly. This avoids harm or crooked placement. Next, straightening rollers remove any bend from the coil. So the strip becomes ready for exact shaping.
Step-by-Step Process of Roller Shutter Door Roll Forming Machine Operation
The material moves through many roll forming stations. These stations slowly bend it into the needed shape. After that, punching and cutting steps finish the pieces.
Key Automation Features in Automatic Rolling Shutter Machine Systems
Modern PLC controls and servo parts let operators make fine changes. They also support steady work in high-speed roller shutter roll forming machine setups.
What Applications Does Roller Shutter Door Roll Forming Machine Serve?
Roller shutter door roll forming machine systems see wide use in making doors for shops, warehouses, factories, and garages. In these places, fast opening, safety, and saving space really count. Commercial sites gain from the strong profiles made by shutter door rolling machine equipment. Those profiles handle many daily uses in stores. Industrial places use rolling door machine products for big openings. The products guard against weather and unwanted entry.
Commercial and Industrial Uses of Shutter Door Roll Forming Machine
These machines create tough slats and guides. Such parts work well for busy security doors in business buildings.
Residential and Specialized Applications of Rolling Shutter Forming Machine
Smaller production runs help make home security shutters. They also allow custom types for air flow or heat keeping.

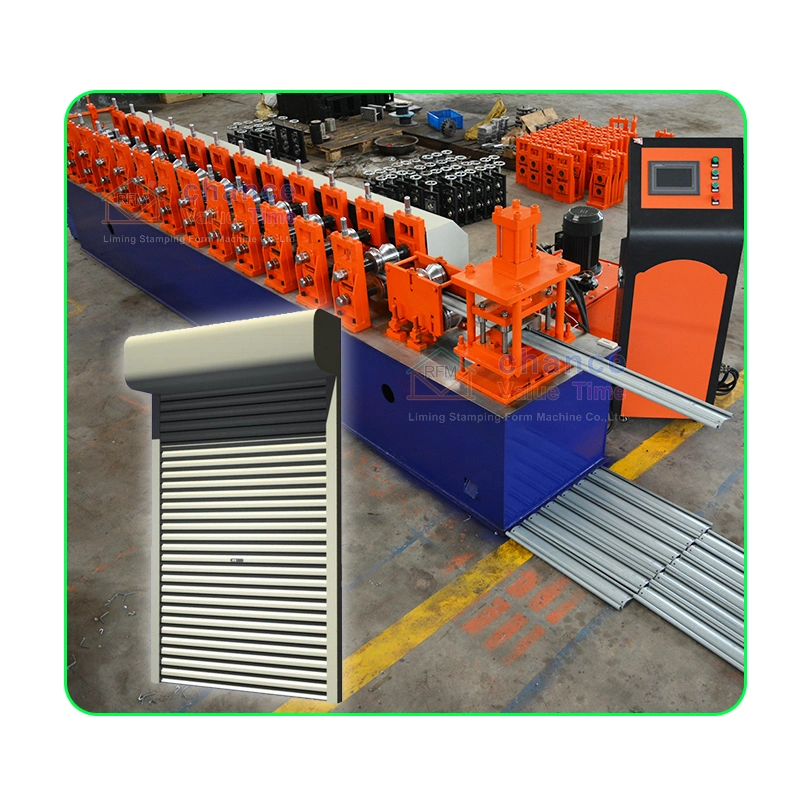

What Are the Key Components of Roller Shutter Door Roll Forming Machine?
The main build of a roller shutter door roll forming machine has several linked parts. They join together to give steady results. The decoiler unit comes in 5-ton to 10-ton sizes. It offers hydraulic or electric drive choices. This unit keeps even pull and sends material without stops. Feeding and guiding systems line up the strip carefully. Then it goes into the roll forming area.
Essential Roll Forming Stations in Roller Shutter Door Making Machine
Most times, there are 12 to 20 hardened steel roller stations. They shape profiles step by step. Chrome plating adds long life and sharp accuracy.
Critical Cutting and Control Systems in Shutter Door Rolling Machine
Flying shear hydraulic cutting and PLC touchscreen controls make sure lengths stay right. They also repeat well over many batches.
What Specifications Define a High-Performance Roller Shutter Door Roll Forming Machine?
When you check a roller shutter door roll forming machine, focus on production speed, material fit, and automatic features. These things affect output quality and cost savings directly. High-speed types can run at 30 m/min on galvanized steel. They cut cycle times a lot for big orders. Still, they keep the shape steady. Material thickness usually goes from 0.8 mm to 1.2 mm for normal steel shutters. Some allow up to 1.5 mm for stronger jobs.
Production Speed and Capacity Factors for Roller Shutter Machine for Sale
Faster lines that hit 30-60 m/min fit companies with large output needs. They want top production levels.
Material Compatibility and Precision Standards in Roller Shutter Door Forming Machine
The machine handles galvanized steel and aluminum. It keeps tight tolerances of ±0.5 mm. This promises parts that swap easily and stay high quality.
What Criteria Determine the Optimal Roller Shutter Door Roll Forming Machine Selection?
Picking the best roller shutter door roll forming machine means comparing tech features to production aims in a clear way. Speed and automation affect daily output a lot. Fully automatic rolling shutter machine designs do best in busy settings. Profile options, like flat, curved, or perforated slats, open more market chances. No extra machines become necessary.
Assessing Durability and Maintenance Needs of Rolling Shutter Patti Machine Price Options
Good hardened rollers and solid frames cut down stops. They also make the machine last longer.
Evaluating Automation Level and Cost Efficiency in Shutter Patti Making Machine Price Decisions
Complete systems with servo controls and fast-change parts balance starting cost with better output over time.
FAQ
What is the typical production speed of a roller shutter machine?
High-performance models achieve up to 30 m/min, while standard configurations range from 20 m/min to 25 m/min depending on material thickness and profile complexity.
Can a shutter door roll forming machine process galvanized steel?
Yes, these machines are specifically designed for galvanized steel coils, as well as aluminum and pre-coated metal strips used in outdoor shutter applications.
How many stations does a roller shutter door roll forming machine usually include?
Most models include 12–20 roll forming stations, ensuring gradual and accurate shaping of shutter slats.
Does the rolling shutter forming machine include automatic cutting?
Advanced machines incorporate flying shear cutting systems, allowing profiles to be cut without stopping production.
What materials are compatible with a shutter guide making machine?
The equipment processes galvanized steel, aluminum, and coated metal sheets, selected according to guide rail strength requirements.
How does automation benefit a roller shutter door making machine?
Automation improves manufacturing efficiency by reducing labor requirements, minimizing material waste, and ensuring consistent dimensional accuracy across large production batches.
Connect with Leading Roller Shutter Door Roll Forming Machine Manufacturers and Suppliers
For enterprises requiring dependable, high-speed equipment tailored to exact production specifications, Hebei Liming operates as an established manufacturer, supplier, and factory with extensive expertise in steel door and window roll forming solutions.
With a production base covering approximately 55,000 m² and multiple modern manufacturing workshops, Hebei Liming supports global customers with customized roll forming systems, including roller shutter door machines, roofing sheet forming lines, slitting lines, and structural steel profile equipment.
Its engineering team delivers tailored machine configurations, integrating PLC automation, precision roller tooling, and high-efficiency forming technology designed for long-term durability and stable output. Clients benefit from factory-direct customization, technical consultation, and comprehensive after-sales support, enabling manufacturers to deploy fully automatic, high-speed roll forming solutions that meet international quality standards and diverse project requirements worldwide. Contact Hebei Liming today for best Roller Shutter Door Roll Forming Machine offer!
