Hebei Liming Automatic Floor Tiles Production Line from Building Material Floor Tile Manufacturer

Component

Uncoiler: used to unfold rolled steel plates and provide raw materials for the forming process.

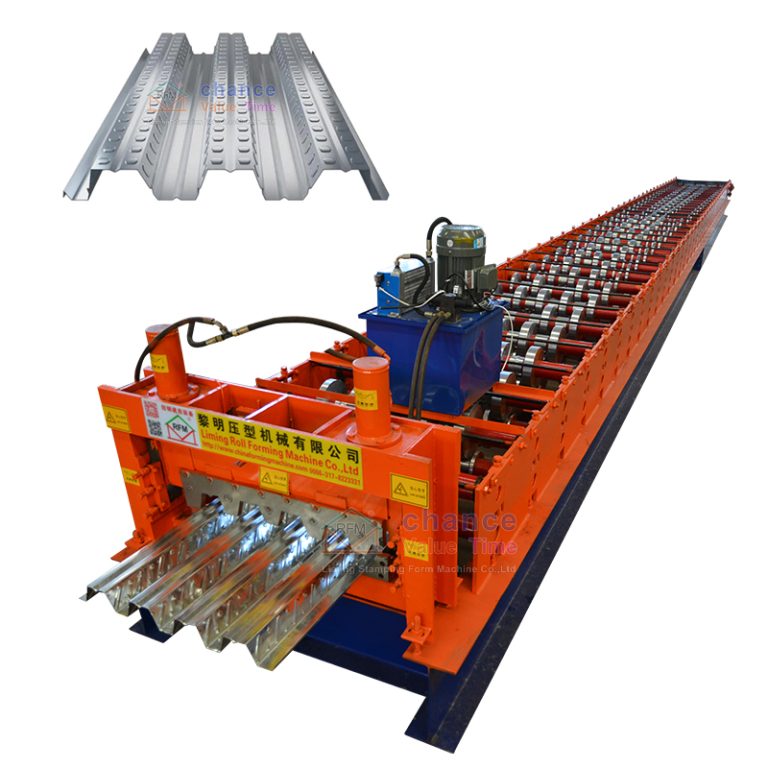

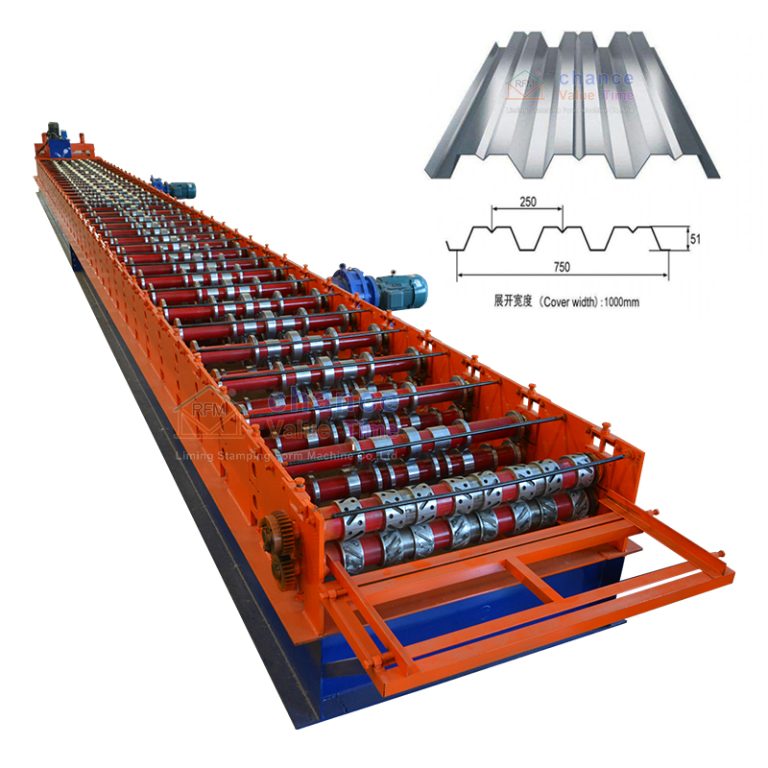

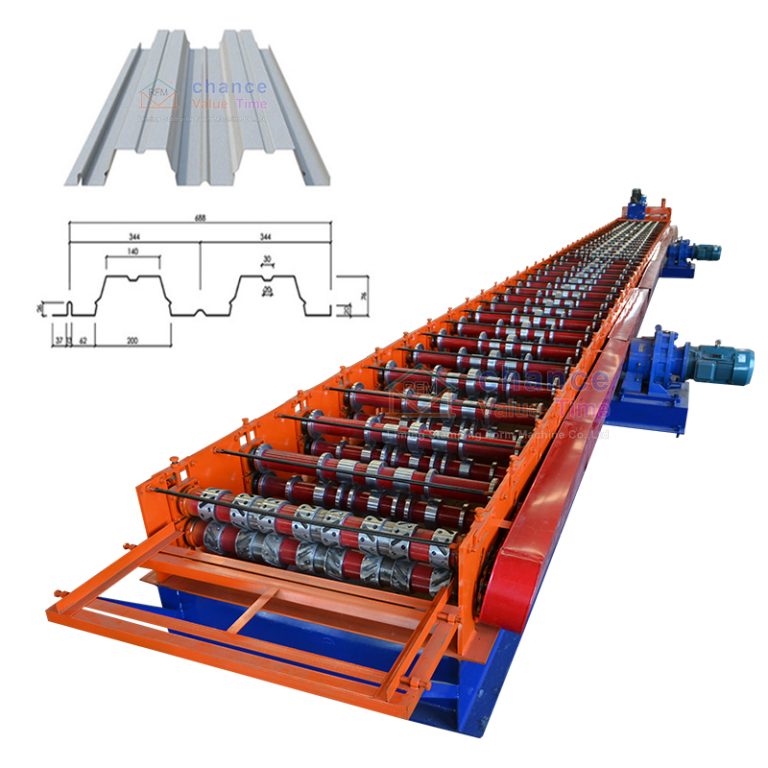

Forming host: It includes multiple forming rollers, which gradually roll the steel plate into the desired shape of the floor support plate.

Hydraulic cutter: used to cut the formed floor slab according to the set length.

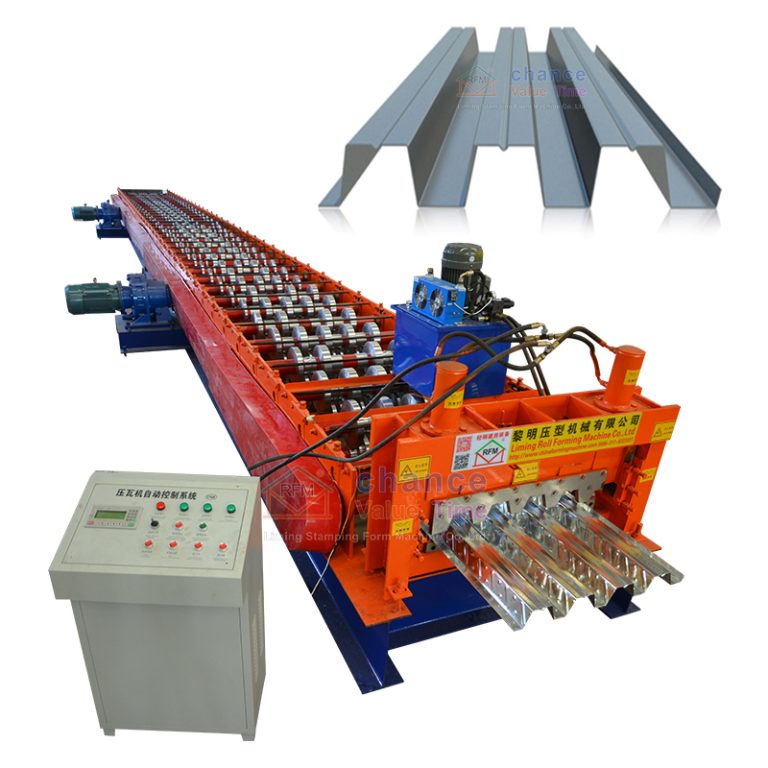

Electronic control system: controls the operation of the entire equipment, including the setting and adjustment of parameters such as molding speed and cutting length.

Hydraulic system: Provides hydraulic power to drive the cutter and other hydraulic actuators.

Discharge rack: used to support and transport cut floor slabs.

Technical Parameter

Rolling speed: generally between 8-12m/min, different models of equipment may vary.

Rolling thickness: usually suitable for steel plate thickness of 0.5-1.5mm.

Forming row number: refers to the number of rows of rollers in the forming host, commonly including 24 rows, 28 rows, etc.

Motor power: The main motor power is generally between 15-30kW, and the hydraulic system motor power is usually between 4-5.5kW.

Dimensions: The length, width, and height dimensions of the device, such as 13000X1500X1500mm.

Weight: The total weight of the equipment, usually ranging from a few tons to over ten tons.

Production Speed and Output

Production speed: usually expressed in meters per minute, such as 8-10m/min, depending on the equipment model and configuration.

Output: depends on production speed, material width and thickness, as well as equipment stability and efficiency

Product Material

Roll material: 45 # steel or GCR bearing steel is usually used, and the surface may be treated with hard chrome to improve wear resistance.

Blade material: The blades of hydraulic cutters are usually made of Cr12 steel and undergo quenching treatment to improve hardness and durability.

In summary, the Deck Floor Roll Forming Machine is an important building equipment, and information on its components, technical parameters, production speed and output, as well as product materials, is crucial for the selection and use of the equipment.
