metal stud roll former - Hebei Liming

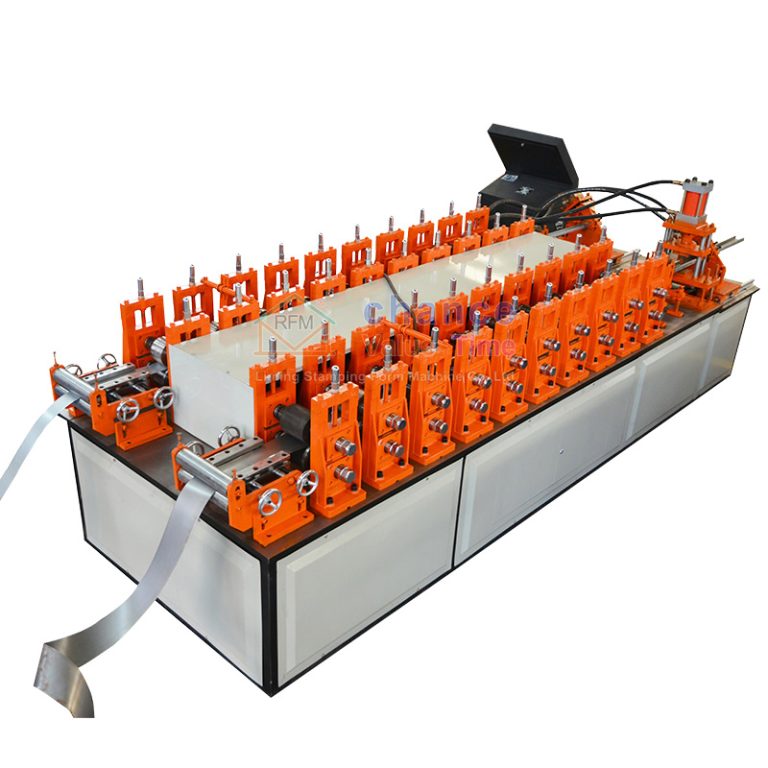

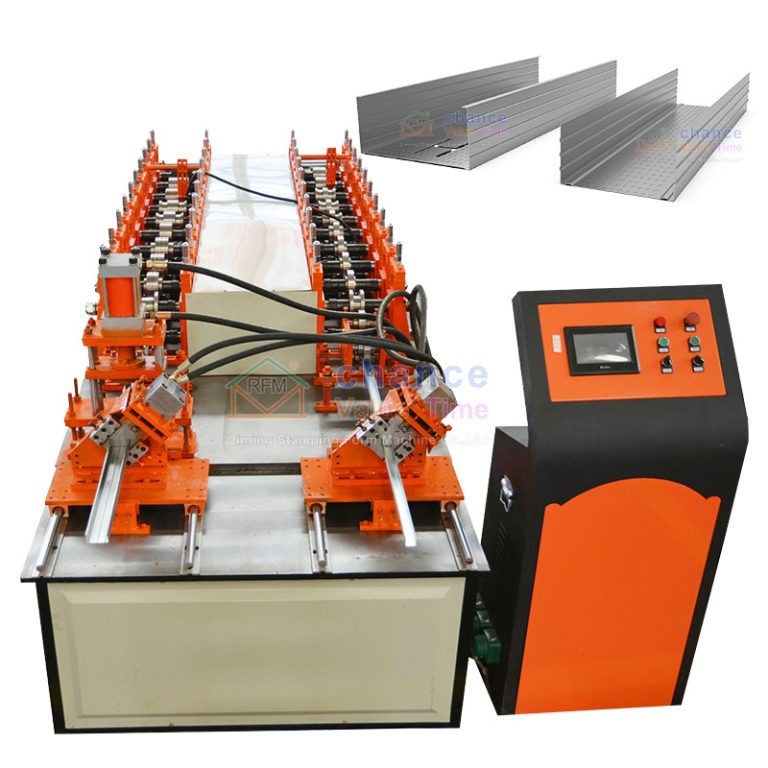

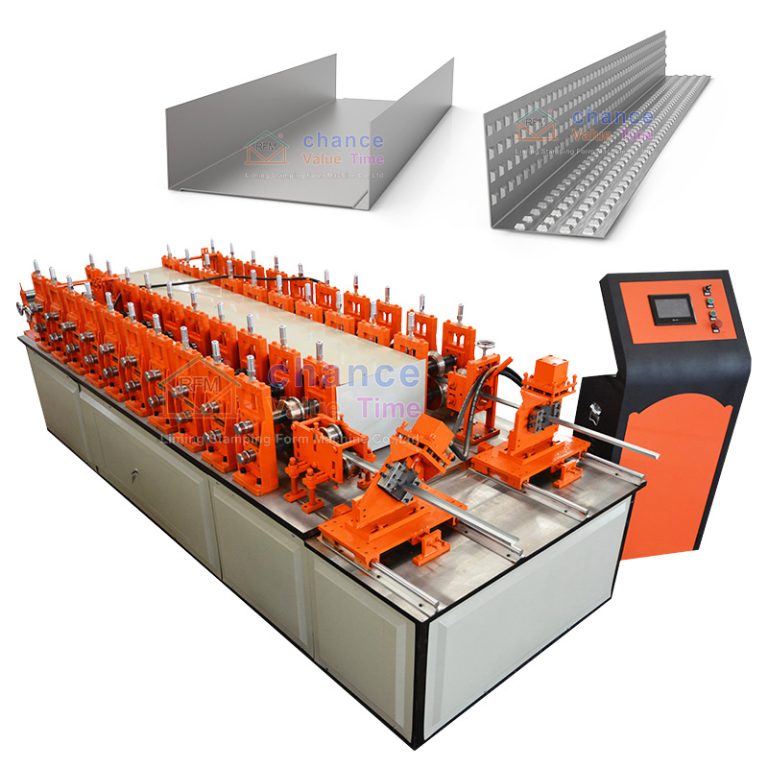

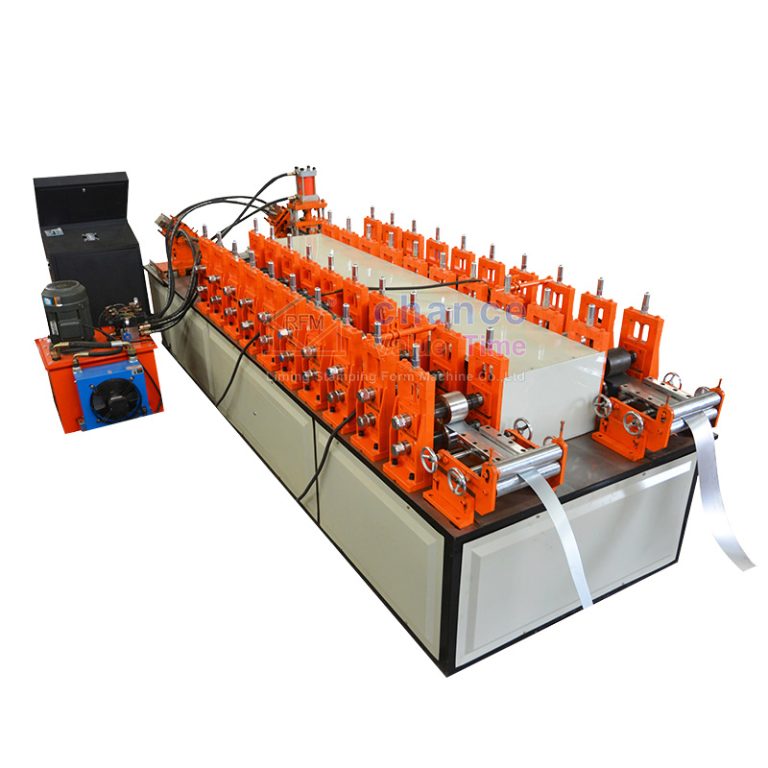

Hebei Liming The Most Popular Double Line Metal Stud Roll Forming Machine For The Construction Industry

The double line metal stud roll forming machine is a specialized equipment for producing metal section profiles through cold rolling forming process, mainly used in the manufacturing of non load bearing partition wall systems and ceiling keel frames in the construction field. It can produce C-shaped keels, U-shaped keels, T-shaped keels, and L-shaped keels.

This double line metal stud roll forming machine uses strip steel as raw material and forms complex cross-section keel profiles such as C-shaped, U-shaped, T-shaped, and L-shaped through continuous cold rolling. It is widely used in the production of light steel keels, painted keels, card keels, and other products.

The double line metal stud roll forming machine adopts a PLC control system, which has the characteristics of high efficiency and high degree of automation. Its production speed can reach 30-120 meters per minute.

Different models of keel machines can produce load-bearing or non load bearing keels according to building needs, among which U-shaped keels are used for the peripheral keels and ceilings of non load bearing partition systems.

Chat Now

Product Video

Product Details

Technical Specifications and Components

A stud and track roll forming machine is engineered with modular components to ensure flexibility and efficiency. The core system includes:

Uncoiler: Holds and feeds metal coils into the machine.

Pre-punching/Notching Station: Adds holes, slots, or notches for fastening.

Roll Forming Stations: Multiple roller dies that incrementally bend the metal into the final shape.

Cutting Unit: Hydraulic or servo-driven blade for precise length cutting.

Control Panel: Touchscreen interface for programming profiles, speed, and material thickness (typically 0.5–3.0 mm).

Advanced models integrate laser sensors for real-time alignment and thickness monitoring, ensuring consistent product quality. The machine supports profiles up to 200 mm in height and 150 mm in width, making it ideal for both standard and custom applications.

Product Parameters

Related Products

Hebei Liming Automatic automatic CE ISO Certificated Factory Supply C Stud Roll Forming Machinery

Hebei Liming Easy Operation Drywall Profile Making Machine Manufacture Steel Stud Forming Machine

Hebei Liming Construction Building Material Wholesale Building Metal Stud Roll Forming Machine

Hebei Liming Customized Fully Automatic U Profile stud and track roll forming machine

FAQ

Q1. How do I choose the right machine for me?

1. A machine doesn't just provide a few photos to prove what they can produce 2. A machine should have a complete production and assembly system photos and videos. When choosing a company with a factory, it is necessary to ensure that the company has a complete after-sales service system.

Q2. You don't show the product I need, can you manufacture it?

Our company's engineers have studied in well-known European cold bending companies and have great advantages in machine design and R&D and manufacturing.

Q3. How long can the machine be built?

Generally speaking, the machine takes about 40 days to complete, if you need a machine urgently, we can make it urgently, because I have a large number of spare parts.

Q4. Why are your prices higher than others?

Because we insist that every factory should put quality first, we make the machines more automated, more reliable and accurate, and have a longer service life. The equipment can be used for nearly 20 years, and we provide lifetime after-sales service.

Q5. Do you have after-sales support?

Product quality is the ultimate, the biggest after-sales service is service, 26 years of production experience, to be a service company that you have the strength to guarantee

Q6. How to get a quotation?

1. Give me the dimension drawing and thickness, it is very important. 2. If you have requirements for production speed, power, voltage and brand, please explain in advance. 3. If you don't have your own outline drawing, we can recommend some models according to your local market standard.
