Sandwich panel roll forming machine serves as a key part in today’s making of insulated mixed panels. These basic setups allow steady making of good panels. Builders use them a lot in projects. The gear joins roll forming, sticking, bubbling, and slicing steps. As a result, it gives even outcomes for many uses.
What Is a Sandwich Panel Roll Forming Machine?
A sandwich panel roll forming machine acts as the main frame of a making line. This line focuses on building mixed panels. It turns metal sheets into shaped sides. At the same time, it sticks them to a heat-block core stuff. The steps mix top and bottom metal parts with items like polyurethane foam, expanded polystyrene (EPS), or rock wool.
The machine usually has an unroll setup for raw metal rolls. It feeds them into the line. A roll forming part shapes the sheets. Glue spread tools add adhesive. Mixed stick sections join parts. Auto slice tools cut them. Newer types add high-push bubble systems for polyurethane cores. These keep exact thick and tight. Making lines often run 100-120 meters long. This lets steady work at speeds up to 6 meters per minute.
Key Components of a Sandwich Panel Production Line
Current sandwich panel production lines include a few joined parts. They work together smoothly.
- Uncoiling System — Deals with metal rolls. It feeds them evenly into the line. Tension check stops bends.
- Roll Forming Machine — Forms top and bottom sides with exact rollers. It makes shapes like trapezoidal, corrugated, or hidden-fastener types.
- Adhesive Coating System — Puts glue in even layers. It uses roller or spray ways for firm stick.
- Composite and Foaming Section — Joins layers. It adds core stuff under set push (often 150-200 bar for PU bubbling).
- Heating and Curing System — Starts the glue. It hardens the foam with infrared or warm-air setups.
- Cooling and Cutting System — Cools panels. Then it slices them exact with hydraulic or flying-saw tools.
- Conveyor and Control System — Runs stuff flow. PLC auto from brought-in brands watches and sets in real time.
These parts team up to make panels with same grade. They cut waste to little.

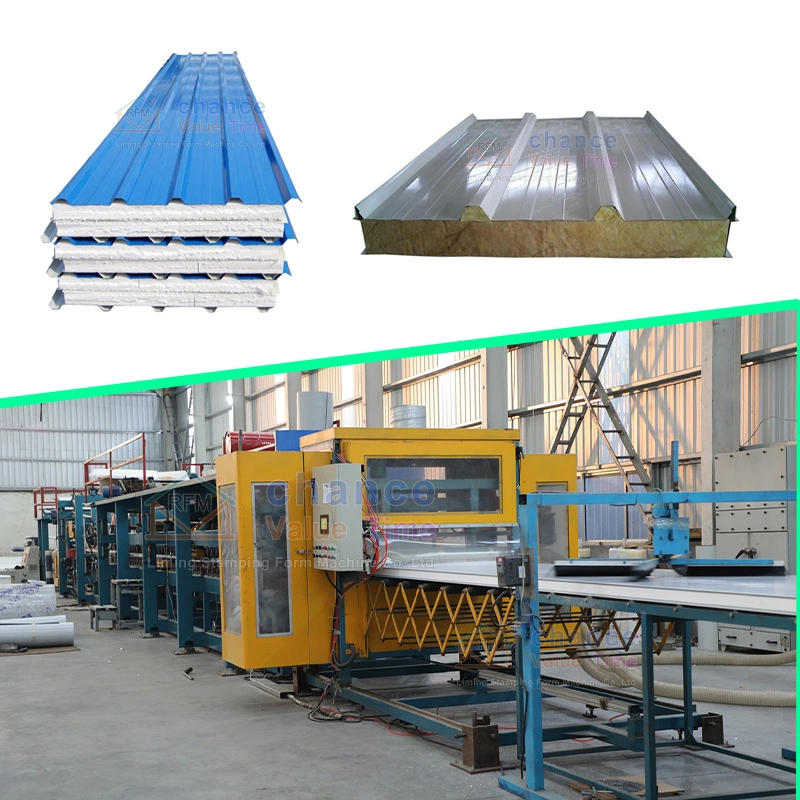

Types of Sandwich Panels Produced
Sandwich panel roll forming machines work with many core stuffs. Each fits certain wants.
- Polyurethane (PU) Sandwich Panels — Give top heat block (low heat pass). They also hold fire well. These suit energy-save builds and cold holds.
- EPS Sandwich Panels — Light weight, low cost, and good for heat and sound block. They fit basic build jobs.
- Rock Wool Sandwich Panels — Stand out in fire hold (A-grade no-burn). They do well in sound work too. Factories and fire-care spots use them often.
Making lines let switches between these. Changes to bubble, feed, or harden parts do the trick.
Production Speed, Output, and Technical Specifications
Usual continuous sandwich panel roll forming machines hit set speeds of 0-6 meters per minute. This depends on panel thick and core kind. Full power needs sit near 300kW. Set voltage is 380V/3/50Hz (can change for other areas). Line length hits about 115 meters. Work height sets at 1200mm for PU panels.
Output changes by setup. But big setups can give 300-600 square meters per hour. Brought-in PLC check systems keep steady run. They hold exact set control. They also make fix easy.
Workflow of the Sandwich Panel Production Process
The making steps run a simple, full-auto order.
- Feeding — Raw metal sheets and core stuffs go in through unrollers.
- Pressing and Forming — Roll forming turns sheets into needed shapes.
- Glue Coating — Glue goes on both sides in even coats.
- Composite Bonding — Layers join with the core stuff.
- Heating Curing — Heat sets the glue and foam hard.
- Cooling — Panels get to safe temps for more steps.
- Cutting — Auto saws cut panels to right lengths.
- Output — Done panels move for stack or auto pack.
This auto flow cuts hand work. It lowers work costs. It boosts making speed.
Advantages of Continuous Sandwich Panel Production Lines
Steady PU sandwich panel roll forming machines and EPS sandwich panel production lines bring a few main pluses over stop-go ways.
- Higher Efficiency — Steady run cuts stop time. It raises output.
- Better Panel Quality — Same push and temp hold make stronger stick. They give smoother sides.
- Lower Material Waste — Exact hold cuts edge cuts and scraps.
- Greater Flexibility — Simple changes to panel thick (30-250mm), width (up to 1250mm), and length.
- Energy Savings — Set heat and cool systems cut full energy use.
These pluses make steady lines the top pick for mid to big makers.
Common Applications of Sandwich Panels
Sandwich panels from automatic sandwich panel roll forming machines see wide use in fields.
- Industrial Buildings — Stores, work shops, and plants need quick builds and good block.
- Cold Storage and Freezer Rooms — PU panels keep low temps steady. They lose little energy.
- Prefabricated Houses and Modular Buildings — Light panels allow fast put-together and moves.
- Commercial Facilities — Stores, show halls, and office spots gain from nice shapes and heat work.
- Agricultural Structures — Bird farms, plant houses, and hold spots get from tough, blocked panels.
Change choices let shapes fit exact build or job needs.
Why Choose High-Precision Sandwich Panel Forming Equipment?
Putting money in a exact sandwich panel roll forming production line makes sure top panel even, right sizes, and great stick power. New gear has forward servo hold, auto thick set, and live grade watch systems. These cut flaw rates a lot. They raise full product same. This fits hard markets like send-out making.
How to Maximize Efficiency with Sandwich Panel Production Lines
To get best work from continuous PU/EPS/rock wool sandwich panel production lines, makers should note these.
- Right raw stuff pick and store to skip wet problems.
- Steady set of bubble push and temp sets.
- Teach workers on PLC face and fix steps.
- Add auto pack systems to smooth next steps.
- Use energy-save heat tech to cut run costs.
These ways help makers hit more output, lower making costs, and better market fight.
Frequently Asked Questions (FAQ)
What materials can a sandwich panel roll forming machine produce?
These machines handle polyurethane, EPS, and rock wool cores with metal facings (steel, aluminum, or color-coated sheets).
What is the typical production speed of a continuous sandwich panel roll forming machine?
Speeds range from 0 to 6 meters per minute, adjustable based on panel type and thickness.
How long is a standard sandwich panel production line?
Most lines measure around 115 meters in length.
What power requirements are needed for a PU sandwich panel roll forming machine?
Total power is approximately 300kW, with 380V/3/50Hz voltage (customizable).
Are these machines customizable for different panel profiles?
Yes, configurations can be adapted to different panel thicknesses, widths, profiles, and core materials.
How much does a complete automatic sandwich panel roll forming production line cost?
Prices vary widely based on configuration, capacity, and additional features. Contact manufacturers for detailed quotations.
Ready to Invest in a High-Performance Sandwich Panel Roll Forming Machine?
Hebei Liming is a well‑established Chinese manufacturer with nearly three decades of experience in designing and producing high‑quality roll forming machines for global customers. They offer a wide range of metal forming equipment for construction and industrial applications, known for durability, precision, and customized solutions.

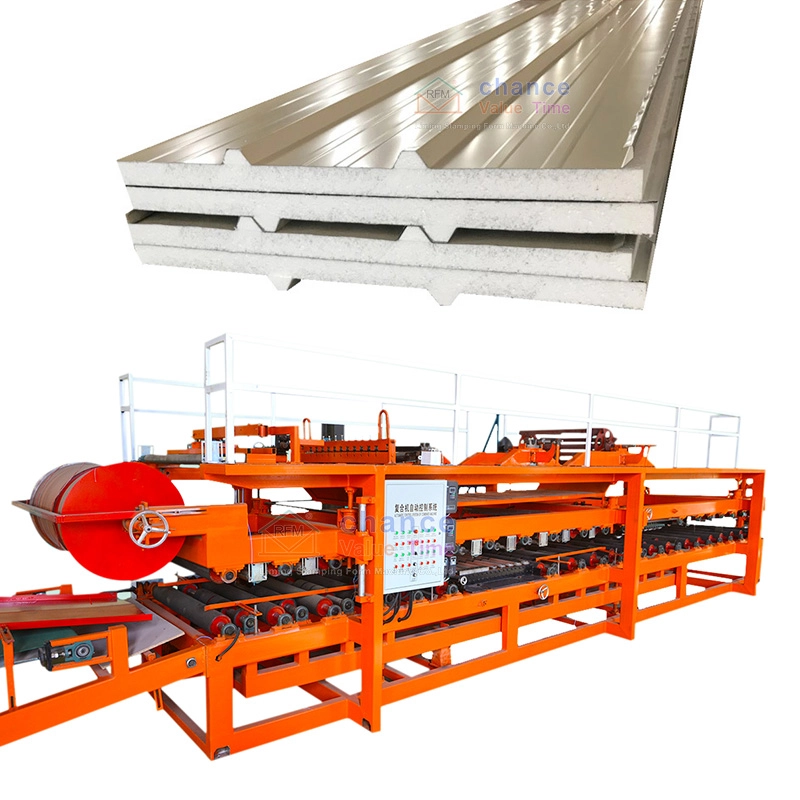

Their sandwich panel roll forming machine is a fully automatic production line that forms metal facings, adds insulation cores (such as EPS), laminates, and cuts panels with high accuracy and efficiency. It’s built for steady output, reliable bonding, and adaptable use in insulated panel manufacturing.
Contact Hebei Liming today to discuss your production needs and request a quote.
