A steel coil slitting line changes wide master coils of metal into narrower strips with accurate cuts along the length. This important step in the metal processing industry helps prepare materials well for later manufacturing steps. People also call the equipment a coil slitting machine or steel slitting machine. It gives high accuracy, very little waste, and steady results for different kinds of materials and thicknesses.
What Is a Steel Coil Slitting Line?
A steel coil slitting line is a complete production system. It unwinds a large coil, cuts it into several narrower strips, and then rewinds them into smaller coils. The line works with materials such as cold-rolled steel, hot-rolled steel, stainless steel, galvanized steel, and aluminum.
The system usually handles thin gauges from 0.1 mm to thicker plates up to 12 mm. Coil widths go from 150 mm to more than 2000 mm. Coil weights reach up to 35 tons or even higher. Modern coil slitter systems use automation to reach good speed, exact results, and safe operation. Line speeds can go up to 200 meters per minute. The actual speed depends on the material and setup.
The steel coil slitting machine is very important in industries that need strips of custom widths. These industries include automotive parts, electrical components, construction materials, appliances, and packaging.
Key Components of a Coil Slitting Machine Line
A complete coil slitting line brings together several stations that work in sync for smooth flow.
Uncoiler (Decoiler)
This part loads the master coil and unwinds it. It uses an expandable mandrel to keep good control while the material moves forward.
Straightener/Leveler
This station flattens the strip. It corrects any coil set or waves before the cutting step.
Slitting Unit
The unit has rotary disc knives on arbors with exact spacers. The knives cut the material along its length and create only small burrs.
Edge Waste (Scrap) Winder
This part collects the trimmed side edges so workers can recycle them.
Tension Control System
The system applies steady tension with pads, loops, or separators. This action stops camber, wrinkles, or telescoping when the material goes onto the recoiler.
Recoiler
The recoiler winds the slit strips into separate coils. It often uses separate mandrels or separators for the multiple strands.
Hydraulic and Electrical Controls
PLC-based automation handles speed, alignment, knife positioning, and safety features.
These parts operate together in a continuous process or a start-stop process. They make sure the edges stay clean and the sizes stay accurate.
The Steel Slitting Process Step by Step
The steel slitting process follows a clear order.
- Coil Loading: An overhead crane or coil car puts the master coil onto the uncoiler mandrel.
- Uncoiling and Feeding: The coil unwinds at a controlled speed. The material goes through pinch rollers and the straightener to become flat.
- Slitting: The strip moves into the slitter head. Upper and lower circular knives with exact clearance and overlap make clean cuts along the length. Spacers set the strip widths.
- Separation and Tensioning: The slit strips go through a separator or looping pit. This step releases stress and keeps good alignment. Tension systems hold the material tight.
- Recoiling: Each strip winds onto the recoiler with controlled tension. It forms uniform smaller coils called mults.
- Unloading: Workers remove the finished slit coils for checking, packing, or next steps such as cut-to-length.
Operators watch the edge condition, width tolerance, and surface quality all the time. Advanced lines have automatic knife setup and real-time checks. These features help cut downtime.
The process works for hr coil slitting machine uses with hot-rolled materials. It also fits cr slitting line or cr slitting machine setups for cold-rolled steel. Operators make small changes for material hardness and thickness.
Types of Steel Slitting Machines and Lines
Steel coil slitting machines come in different sizes and uses.
- Light-gauge lines handle thin materials from 0.1 to 2.0 mm at high speeds. They suit precision work like electrical silicon steel or stainless steel strips.
- Medium-gauge systems deal with thicknesses from 0.6 to 3.0 mm. These are common in automotive and appliance areas.
- Heavy-gauge slitting lines manage thicker plates up to 12 mm. They serve structural steel or construction needs. These lines often run at lower speeds to keep power and stability.
Specialized versions include stainless steel slitting machine or stainless steel coil slitting machine setups. They use better corrosion-resistant parts and finer blade materials. Sheet metal coil slitter and metal coil slitting machine lines fit aluminum or coated metals. Steel strip slitting machine and ss coil slitting machine focus on stainless steel or certain alloy needs.
Coil slitting equipment ranges from simple manual setups to fully automated high-speed coil slitting line systems. These advanced systems include IoT monitoring for predictive maintenance.
Advantages of Modern Coil Slitting Technology
A good steel coil slitting line or coil slitting machine brings several benefits to daily operations.
- Precision and Consistency: The system keeps tight width tolerances, often ±0.1 mm or better. It also makes clean edges. These results reduce the need for extra processing.
- Material Efficiency: Better slitting patterns cut scrap to a minimum. This step improves the yield from costly master coils.
- Productivity: High line speeds and automation allow large production runs with less labor.
- Versatility: Adjustable setups work with different coil widths, thicknesses, and materials. They meet hr coil slitting machine or metal coil slitter needs.
- Cost Effectiveness: Continuous slitting costs less per unit than cutting single sheets. It also supports just-in-time inventory.
- Durability: Strong designs with quality parts give reliable service for many years when workers maintain them correctly.
Coil slitting machine price changes with width capacity, thickness range, automation level, and speed. Basic systems start at lower costs. High-capacity customized steel slitting lines for sale with extra features need higher investment. Factors that influence steel coil slitting machine price or coil slitting machine price include coil weight handling, number of slits possible, and links to other equipment.
Applications Across Industries
Steel slitting machine output helps many different sectors. Automotive makers use the slit strips for body panels, frames, and structural parts. The electrical industry processes silicon steel for transformers and motors. Appliance producers depend on stainless or coated strips for housings and panels. Construction uses include roofing, cladding, and framing materials from galvanized or cold-rolled coils.
Packaging and tube or pipe production also need precise coil slitter output. Steel coil slitting makes sure raw materials meet exact sizes. This support helps efficient fabrication and assembly lines.
Factors to Consider When Selecting a Slitting Line
Companies must check several points when they choose the right coil slitting line manufacturers or equipment. They look at production volume, material types, needed tolerances, and available floor space. Important points include maximum coil weight and width, desired line speed, number of slits per pass, and automation features.
Easy maintenance access, blade life, and safety systems are also key. Steel slitting line setups should connect well with existing cut-to-length or roll forming operations. Good connections create a smoother workflow.

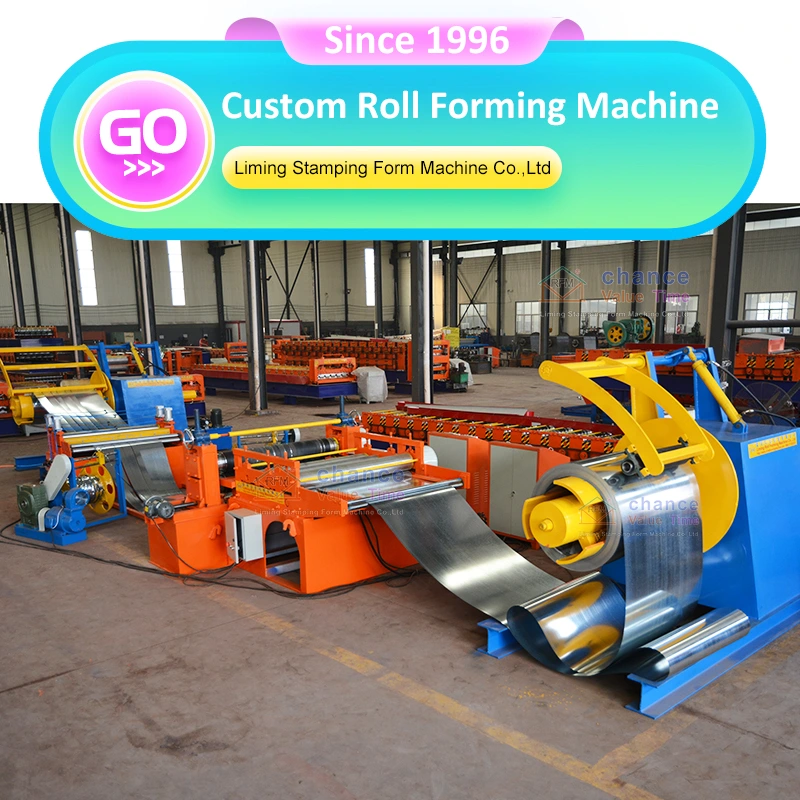

The image below illustrates a typical steel coil slitting line setup with its main stations arranged for continuous processing.
Maintenance and Operational Best Practices
Regular blade sharpening, arbor alignment checks, and tension system calibration keep any metal coil slitting machine in top condition. Good lubrication and checks on hydraulic and electrical parts stop unexpected stops. Training for operators on setup steps and safety rules improves both output and equipment life.
FAQ
What materials can a steel coil slitting line process?
These lines handle cold-rolled steel, hot-rolled steel, stainless steel, galvanized steel, silicon steel, and non-ferrous metals like aluminum across various thicknesses and widths.
How does a coil slitter achieve precise widths?
Rotary disc knives mounted on arbors with precision spacers and separators ensure accurate longitudinal cuts while tension controls prevent material distortion.
What is the typical speed of a steel slitting machine?
Speeds range from 60 to 200 meters per minute, depending on material thickness, coil weight, and machine model. Thicker materials usually run slower for quality control.
What factors affect steel coil slitting machine price?
Capacity (width and thickness), automation level, line speed, number of slits, and customization options primarily determine pricing.
How much scrap does the coil slitting process generate?
Edge trimming produces minimal scrap, which is collected and recycled. Optimized patterns maximize usable material yield.
