A Unistrut channel roll forming machine changes flat metal coils into exact, strong strut channels through steady automated forming. This equipment gives steady profiles that modern industrial projects need. Companies and engineers who look for dependable solutions pick automatic unistrut channel production lines for their quick work, accuracy, and good value. This article looks at the technology, uses, features, and benefits of Unistrut channel roll forming machines. It helps B2B buyers make smart choices.
Businesses in construction, solar energy, and electrical fields see rising need for standard support systems. Automated roll forming meets these needs. It makes large numbers of uniform channels in an efficient way.

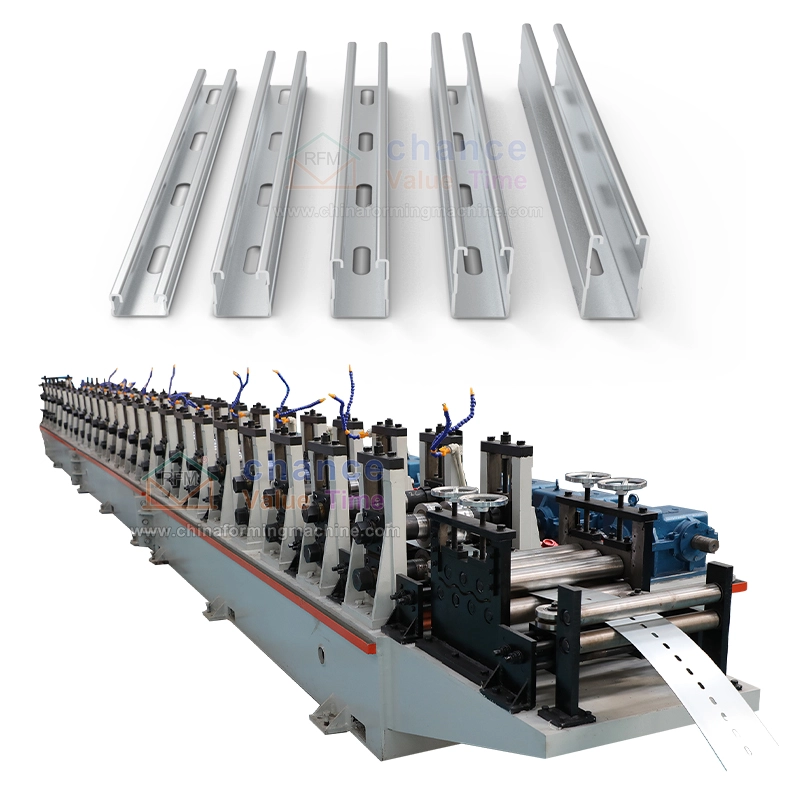

What Is a Unistrut Channel Roll Forming Machine?
Definition and Working Principle of Strut Channel Forming Machine
A Unistrut channel roll forming machine is special industrial equipment. It forms metal coils into standard strut channels. The machine works on the idea of continuous cold roll forming. It sends a flat strip through many roller stations. These stations bend the material step by step into the wanted C-shaped or U-shaped profile. The process uses no heat.
This method gives high repeatability and keeps structural strength. The machine brings together decoiling, leveling, punching, forming, and cutting in one automated production line.
How Roll Forming Technology Shapes Unistrut Channels
Roll forming technology uses pairs of rollers in sequence. These rollers bend the metal strip a little at a time. Each station makes a small change until the final profile comes out. Normal lines have 18 to 28 forming stations. The number depends on how complex the profile is.
The technology creates channels with exact lips and edges. These parts add strength and work well with standard fittings. This step-by-step method reduces stress on the material. It also keeps wall thickness the same.
Difference Between Manual Fabrication and Automated Roll Forming
Manual fabrication of strut channels uses cutting, bending, and welding of separate pieces. This way is slow and needs much labor. It often leads to differences in size and quality.
Automated roll forming brings clear improvements. Production speeds reach up to 30 m/min. The output stays very repeatable. Labor needs fall a lot. Waste goes down. Dimensional accuracy gets better to tolerances as tight as ±1.5 mm.
Comparison Table (Manual vs. Automated):
- Speed: Manual — low (meters per hour); Automated — 10–30 m/min
- Consistency: Manual — variable; Automated — excellent
- Labor: Manual — high; Automated — minimal
- Cost per unit: Manual — higher; Automated — lower at scale
Types of Strut Channel Profiles (C Channel, U Channel, Slotted Channel)
Common profiles include 41×41 mm, 41×21 mm, 41×62 mm, and 41×82 mm. C channels and U channels form the base structures. Slotted channels have punched holes or long slots. These make it easy to attach fittings and accessories.
These different types support various load needs and installation methods in many industries.
Applications of Unistrut Channel in Industrial Projects
Solar Panel Mounting System Applications
Strut channels act as the main support for solar photovoltaic mounting systems. They build adjustable frames that hold panels on rooftops or ground setups. Their strength and resistance to corrosion, especially when galvanized, give long-term durability in outdoor conditions.
High-precision channels keep structural alignment. This alignment is important for best solar performance.
Electrical Cable Tray and Support Systems
Electrical contractors use strut channels to hold cable trays, conduits, and wiring systems. The modular design lets teams assemble and change things quickly in commercial buildings and industrial facilities.
HVAC and Piping Structural Support
HVAC installers depend on strut channels to hang ducts, pipes, and mechanical equipment. The channels offer steady support that resists vibration. This support makes maintenance access easier.
Construction and Warehouse Framing Structures
In construction and warehousing, strut channels create racking systems, shelving, and framing structures. Their versatility speeds up installation. They also provide strong load-bearing capacity.
Key Features of Unistrut Channel Roll Forming Machine
High-Speed Continuous Production System
Modern machines work at speeds from 0–30 m/min, not counting shear time. Continuous production cuts downtime. It supports high-volume output for big projects.
PLC Automatic Control and Precision Forming
PLC systems with servo motors give accurate feeding and forming. Operators watch and change settings through easy interfaces. This leads to steady results.
Multi-Profile Adjustable Roll Forming Design
Advanced designs permit quick adjustments or roll changes. These changes let the line make several channel sizes. This flexibility meets different customer needs without extra machines.
Integrated Punching and Cutting System
Inline punching makes holes and slots with accuracy. Hydraulic flying cutters give clean and exact lengths at high speeds.
Material Compatibility (Galvanized Steel, Stainless Steel)
Machines handle galvanized steel, low-carbon steel, and stainless steel. Thickness ranges from 1.5–3.0 mm. This range covers most industrial uses.
How Unistrut Channel Roll Forming Machine Works
Decoiler Feeding System Process
The process starts with a decoiler. It releases the metal coil in a smooth way. A leveling unit makes the strip flat. Then a servo feeder moves it exactly into the forming stations.
Roll Forming Station Shaping Steps
- Initial stations create basic bends.
- Middle stations refine the side walls and lips.
- Final stations calibrate the profile for exact dimensions.
Multiple stations make sure the shaping is smooth and free of defects.
Punching and Slot Forming Mechanism
Punching units create holes or slots at set intervals. Servo-controlled systems keep accuracy even at high speeds.
Cutting and Output Stacking System
A hydraulic cutter cuts the formed channel to the right length. Conveyors and stackers gather the finished pieces in an efficient manner for packaging or shipping.
Advantages of Using a Strut Channel Roll Forming Machine
Increased Production Efficiency and Speed
Automated lines raise output a lot when compared with manual methods. Steady high-speed work helps meet tight project deadlines.
Reduced Labor and Manufacturing Cost
Fewer operators run the whole line. Lower costs per unit and less material waste improve returns for manufacturers.
High Precision and Consistency in Profiles
Roll forming produces uniform channels with tight tolerances. This consistency makes sure the channels fit standard fittings. It also gives reliable structural performance.
Strong Adaptability for Custom Designs
Manufacturers can adjust profiles, hole patterns, and lengths. They do this to match specific project needs through OEM/ODM capabilities.
Technical Parameters and Machine Configuration
Material Thickness Range and Steel Type
Typical thickness range is 1.5–3.0 mm. Common materials include galvanized steel and low-carbon steel. These have yield strengths suitable for structural use.
Production Speed and Automation Level
Lines reach 0–30 m/min. Full PLC automation with servo systems offers high reliability and easy operation.
Roller Material and Shaft Design
Rollers use GCr15 steel hardened to HRC58-62 with chrome plating for long life. Shafts are typically 76 mm diameter. They come from precision-finished 45# steel.
Customizable Die and Mold System
Punching dies and forming rolls can be made for different profiles and slot patterns.
Sample Technical Specifications Table:
- Working Speed: 0–30 m/min
- Thickness: 1.5–3.0 mm
- Roller Material: GCr15 (HRC58-62)
- Main Power: 45 kW
- Control: Panasonic PLC
- Decoiler: 5T manual/hydraulic
- Cutting Tolerance: ±1.5 mm
Choosing the Right Unistrut Channel Machine Manufacturer
Importance of Machine Durability and Precision
Buyers should focus on strong build, quality parts, and proven accuracy in forming and cutting.
After-Sales Service and Technical Support
Reliable manufacturers provide installation, training, spare parts, and continued technical help.
Custom Design Capability for Different Profiles
The best partners design solutions for special profile requirements and production volumes.
Export Experience and Industrial Standards Compliance
Global experience and following international standards help with smooth delivery and meeting rules.
Partner with a Trusted Strut Channel Roll Forming Machine Manufacturer
Hebei Liming offers robust Unistrut channel roll forming machines with advanced automation, precision engineering, and customization options backed by nearly 30 years of experience. Their equipment supports high-speed production of quality strut profiles for diverse industrial needs, with reliable global support and tailored solutions for buyers. Contact them today for a customized automatic unistrut channel production line design or request a detailed quotation for your facility.
FAQ
What is the typical production speed of a Unistrut channel roll forming machine?
Speeds range from 0–30 m/min depending on configuration, material thickness, and punching complexity.
Which materials can an automatic strut channel production line process?
Common materials include galvanized steel, low-carbon steel, and stainless steel in the 1.5–3.0 mm thickness range.
How does the machine handle punching and slotting?
Integrated servo-controlled punching units create precise holes and slots inline during the forming process.
What are common Unistrut channel sizes for solar applications?
Popular sizes include 41×21 mm, 41×41 mm, and 41×62 mm, which provide excellent strength-to-weight ratios for solar mounting.
How do I choose the right strut channel roll forming machine manufacturer?
Evaluate experience, customization capabilities, after-sales support, component quality, and export track record.
Investing in a high-quality Unistrut channel roll forming machine positions manufacturers for long-term success in growing markets like solar energy and industrial construction. The combination of automation, precision, and versatility delivers strong returns through efficient, consistent production. Reach out to trusted experts for personalized guidance on your next production line.
