A light gauge steel frame roll forming machine finds wide use in current construction work. It makes exact steel framing parts in an effective way. This light gauge steel framing machine guide and steel frame roll forming machine overview describes how the equipment helps create firm yet light structures for homes and business buildings. People in the building trade like these machines. They give steady quality and quick production from steel coils.
What Is a Light Gauge Steel Frame Roll Forming Machine?
A light gauge steel frame roll forming machine is special factory equipment. It forms thin steel sheets into structural framing members. The process uses no heat. It depends on cold bending. This method keeps the material strength while it makes accurate profiles.
Basic Working Principle of the Machine
The light gauge steel roll forming machine operates by sending a flat steel coil through a series of roller stations. Each station makes a small bend step by step. The steel finally reaches the wanted shape. This steel stud roll forming process gives uniformity and good precision. The whole operation runs without stops. It allows efficient mass production of framing elements.
Operators put the coil into the machine. The material then goes through steady changes in shape. Punching for holes and notching often happens in line before the last forming and cutting steps. The cold-forming method stops distortion that can come from hot processes. It also keeps tight dimensional tolerances.
Key Components of the Machine
Every steel frame roll forming machine has several important roll forming line components. These parts work together without trouble.
- The decoiler holds and unwinds the steel coil in a smooth manner.
- The feeding and leveling system straightens the material. It guides the strip into the rollers with care.
- Roll forming stations hold many pairs of rollers. These rollers slowly shape the profile.
- Punching units make service holes, dimples, or notches when needed.
- The hydraulic cutting system cuts the formed profiles to exact lengths.
- The control panel (usually PLC-based) handles speed, length, and automation.
- The stacking table collects finished pieces for easy handling.
These parts of steel frame roll forming machine make sure the operation is reliable. They cause little downtime when workers maintain them well.
How Does Light Gauge Steel Frame Roll Forming Machine Work?
Knowledge of the production flow helps buyers see the efficiency of the equipment.
Decoiler and Feeding System
The process starts with the steel coil feeding system roll forming line. The decoiler unwinds the galvanized coil under steady tension. A leveling unit then removes waves or curls. It makes the strip go into the forming stations straight and in line. Good feeding stops defects such as twisting or uneven profiles.
Roll Forming Stations
The main part of the work happens in the roll forming stations. The steel strip moves through 10 to 20 or more stations. Each pair of rollers does a small bend. The roll forming process step by step slowly turns the flat strip into a C or U shape. Built-in punching stations add holes for electrical wiring, plumbing, or assembly fasteners at exact spots. This in-line integration cuts down extra work. It also improves accuracy.
Cutting and Stacking System
When the profile reaches the needed length, the automatic cutting system for steel frame machine starts to work. Hydraulic or servo-driven shears cut the material in a clean way without burrs. The finished studs or tracks then go to an output conveyor or automatic stacking system. There workers bundle them neatly for transport or quick assembly. This full automation supports high output with very little manual help.
Applications of Light Gauge Steel Frame Roll Forming Machine
The machine serves many areas in the construction industry.
Residential Building Construction
In home projects, the equipment makes parts for the light steel villa framing system. It creates wall studs, floor joists, roof trusses, and tracks. These parts come together fast on the site. Builders like the light weight. It makes transport easier and needs smaller foundations than old materials.
Commercial and Industrial Buildings
Steel structure framing applications cover offices, warehouses, and retail spaces. The profiles offer excellent strength-to-weight ratios. They allow longer spans and quicker building. The finished frames hold cladding, insulation, and inside finishes. They also meet fire and seismic rules.
Prefabricated and Modular Housing
Modular building steel frame production gains a lot from these machines. Factories make complete wall panels, floor cassettes, or volumetric modules away from the site. The exact formed components help easy assembly on location. This shortens total project times and improves quality control in a controlled setting.
Common profiles include C channels for vertical load-bearing elements and U channels for horizontal tracks. These elements form the basic skeleton for walls, floors, and roofs in all uses.
Advantages of Light Gauge Steel Frame Roll Forming Machine
Investment in the equipment brings clear operation and money benefits.
High Production Efficiency
Automated steel frame production line benefits include speeds that often reach 20–50 meters per minute or higher. It depends on the model. One machine can take the place of several manual labor teams. It cuts workforce needs and speeds up delivery for big projects.
Precision and Consistency
The accuracy of roll forming technology gives profiles with tight tolerances. These are usually within ±0.5–1 mm. Steady dimensions reduce on-site changes. They cut fitting problems during assembly. They also make sure structural strength stays good in every batch.
Cost and Material Savings
Reduced waste in steel framing system is a big plus. Roll forming from coils creates much less scrap than cutting sheets one by one. The light weight steel lowers transport costs. It also allows smaller foundations. In addition, steel framing fights warping, shrinking, and biological threats. This leads to lower long-term upkeep costs.
Compared to timber, light gauge steel gives better fire resistance, dimensional stability, and recyclability. Versus concrete, it offers quicker construction and more design choices.
Types of Light Gauge Steel Frame Roll Forming Machines
Buyers can pick from several setups based on production needs.

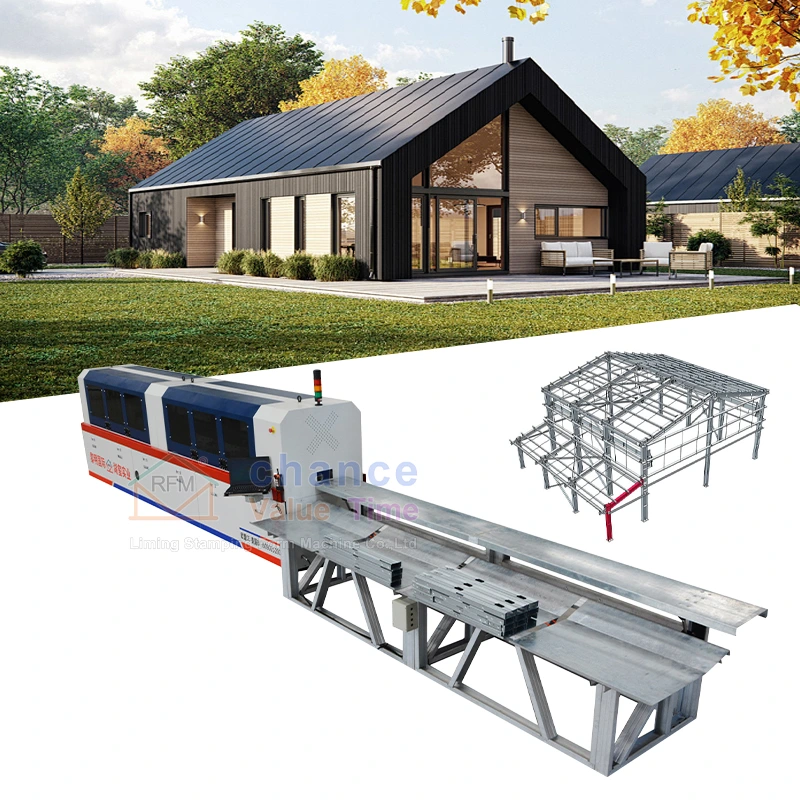

C Channel Roll Forming Machine
These machines focus on C channel steel framing production. The resulting studs have lips and webs. They suit load-bearing walls and partitions. They appear often in both home and business framing systems.
U Channel Roll Forming Machine
The U track steel framing system forms horizontal members. These receive C studs. Tracks make the top and bottom plates of wall assemblies. They also support floor or roof structures. Many lines make both C and U profiles on the same equipment or with quick-change tooling.

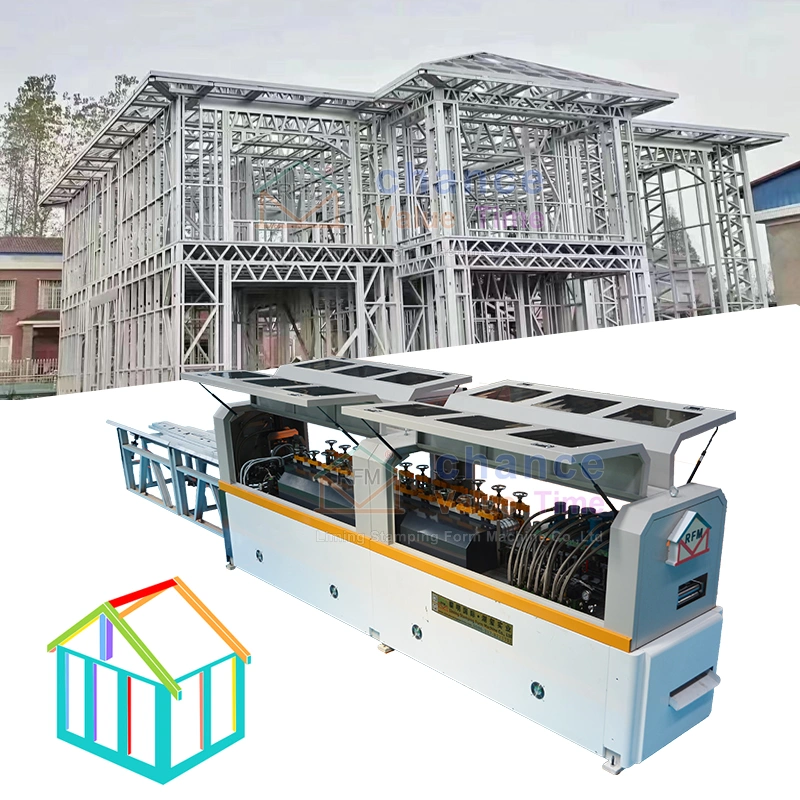

Fully Automatic Steel Frame Line
Advanced automatic light gauge steel production line models join software control, multi-profile ability, in-line punching, and high-speed cutting. These systems fit bigger factories. They need frequent profile changes or high daily output. Differences exist between single-profile dedicated machines and versatile multi-profile lines. They also show varying degrees of automation from semi-automatic to fully computer-controlled.
How to Choose the Right Light Gauge Steel Frame Roll Forming Machine
Careful review makes sure the equipment fits operation needs.
Production Capacity Requirements
Output speed roll forming machine selection depends on project volume. Small workshops may need 15–30 meters per minute. Large operations demand higher throughput. Buyers should calculate needed meters per hour or shift. They should also consider setup times between batches.
Material Thickness Compatibility
Steel coil thickness machine compatibility is very important. Most light gauge machines handle 0.5–1.2 mm or up to 2.0 mm galvanized steel. The chosen model must fit the gauges that structural engineers specify for the planned buildings. It must do this without hurting profile quality or machine life.
Automation Level
Decisions between manual vs automatic steel framing machine affect labor costs and consistency. Basic models need more operator help. Fully automatic versions with PLC and touchscreen controls cut errors. They also support integration with design software. Buyers should check long-term labor savings, precision needs, and available technical support.
A practical checklist includes:
- Required daily or monthly output.
- Profile range and size variations.
- Material specifications and coil width.
- Budget for initial investment and ongoing maintenance.
- Available factory space and power supply.
- After-sales service and spare parts availability.
Why Choose Hebei Liming for Your Light Gauge Steel Frame Roll Forming Machine
Hebei Liming brings 28 years of experience in designing and manufacturing high-quality roll forming machines. This includes solutions for light gauge steel framing applications. The company started with a focus on precision and durability. It produces equipment built for reliable performance in construction component manufacturing. Strong engineering capabilities and global service reach support this.
Contact Hebei Liming today to discuss your project requirements and explore customized light gauge steel frame roll forming machine options that match your production goals.
FAQ
What is a light gauge steel frame roll forming machine?
It is industrial equipment that continuously shapes galvanized steel coils into C, U, and other framing profiles through cold roll forming.
How does a steel frame roll forming machine work?
The machine unwinds a coil, levels the strip, progressively bends it through roller stations, punches holes if needed, cuts to length, and stacks the finished pieces.
What are the main applications of light gauge steel framing?
Applications include residential villas, commercial buildings, industrial facilities, and prefabricated or modular housing.
