Clean room panel roll forming problems can reduce flatness, damage surfaces, distort joints, and interrupt bonding or cutting. This guide explains how to fix clean room panel roll forming defects by tracing each symptom to the feeding, forming, laminating, or cutting stage. It also provides a clean room sandwich panel production line troubleshooting method for bowing, twisting, edge waves, scratches, joint mismatch, thickness variation, delamination, core gaps, and cutting errors.
Why Clean Room Panel Defects Need Structured Diagnosis
Clean room panels require accurate geometry and cleanable surfaces. Official sterile-cleanroom guidance states that exposed surfaces should be smooth, impervious, and unbroken. Scratches, open joints, dents, and distorted edges can therefore become functional defects.
Separate the Symptom from the Root Cause
One defect can originate in several stages. A surface wave can begin in the coil, develop during forming, or appear when laminating pressure compresses the core unevenly.
The operator should record the material batch, dimensions, speed, defect location, and settings. The operator should then identify the first stage where the defect appears.
Change One Variable at a Time
The operator should not adjust several stands, guides, and speeds together. Each test should change one variable and compare samples with the baseline.

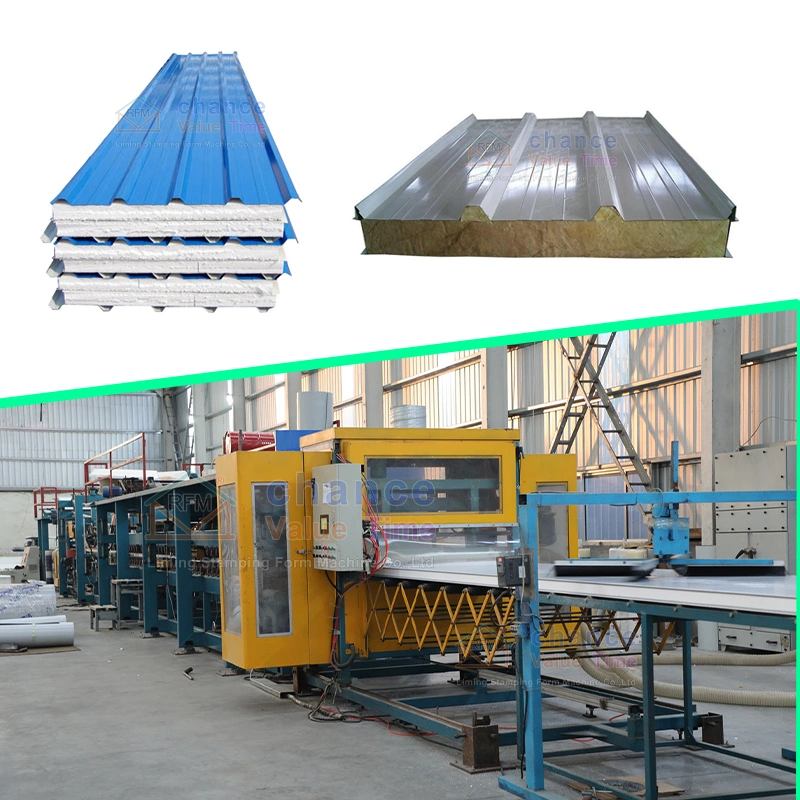

Clean Room Sandwich Panel Production Line Troubleshooting Workflow
Step 1: Identify the Defect Pattern
The operator should determine whether the defect is continuous, intermittent, or repeated at a fixed interval.
A continuous defect often indicates misalignment, an incorrect roll gap, or unsuitable material. An intermittent defect may indicate unstable feeding, inconsistent bonding, signal loss, or speed variation. A repeating mark often points to a rotating component.

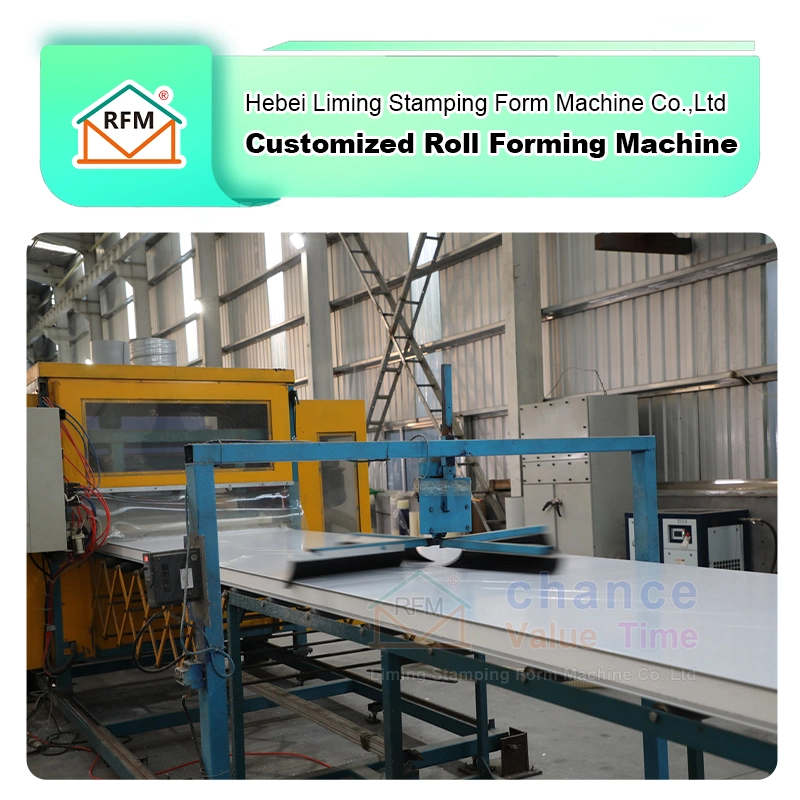

Step 2: Locate the First Defective Stage
The operator should inspect the sheet before forming, after selected stands, after core insertion, after lamination, and after cutting.
A panel that stays flat after forming but becomes wavy after lamination probably has a pressure, core, adhesive, or synchronization problem.
How to Fix Clean Room Panel Roll Forming Defects Safely
The operator should establish a baseline. The operator should adjust the station closest to the first visible error, restart slowly, and inspect several panels.
The operator should stop the line when a defect causes continuous damage, severe joint mismatch, core crushing, unstable cutting, or uncontrolled movement.
Panel Bowing, Camber, and Twist
Panel bow appears as upward, downward, or sideways curvature. Panel twist causes the four corners to sit on different planes.
Common Causes and Corrections
Unequal longitudinal strain can produce bow and twist. Research connects these defects with nonuniform strain distribution during roll forming.
Common causes include off-center feeding, unequal roll gaps, misaligned stands, excessive deformation, incorrect straightening, uneven exit support, and changes in sheet properties.
The operator should measure both diagonals and compare the left and right dimensions. The operator should recenter the sheet, equalize clearances, correct the first asymmetrical stand, and adjust straightening gradually.
Edge Wave, Local Buckling, and End Flare
Edge wave creates repeated undulation along an edge. End flare causes the profile to open, close, or change near a cut end.
Why Edge Instability Develops
Different sheet areas travel through different paths during forming. The outer edge can become longer than the center, and the strain difference can create waves.
Research shows that sheet thickness, flange geometry, and forming speed can influence edge-wave severity. The tested process produced more severe waves with thinner sheet and higher speed.
The operator should find the first unstable stand. The operator should check roll clearance, deformation between stands, material specifications, and cutter support.
Incorrect Dimensions and Joint Mismatch
A panel can meet its overall width specification while its male or female joint remains incorrect. Joint errors can prevent engagement, leave a gap, offset the faces, or damage the coating.
Measure the Complete Profile
- The operator should measure the overall width, effective width, and finished length.
- The operator should measure the panel thickness, rib height, and rib spacing.
- The operator should measure both joint profiles, bend angles, and diagonals.
The operator should use an approved profile gauge when a tape measure cannot capture the joint geometry.
Find the First Incorrect Bend
The operator should compare the profile after selected stands and correct the first bend outside the intended sequence.
The operator should also dry-fit two panels. The operator should check the front, middle, and rear because twist or width variation may change the fit.
Surface Scratches, Dents, and Film Defects
Use the Mark Pattern to Find the Source
A continuous scratch usually indicates contact with a guide, burr, frame, or support. A repeating mark may match a roller or measuring wheel. A random dent may indicate debris or poor support.
The operator should locate where the mark first appears. The operator should inspect contact surfaces, roller rotation, guide clearance, tracking, and the incoming coil.
Protective-film wrinkles can result from uneven tension, misalignment, contamination, or speed mismatch. The operator should identify where the wrinkle begins before changing film pressure.
Uneven Thickness, Core Gaps, and Delamination
These defects usually originate in core feeding, adhesive application, or lamination.
Diagnose the Defect Type
The operator should map panel thickness across the width and length. Unequal clearance, variable core thickness, overlapping core pieces, local compression, or foreign material can cause variation.
Lamination research shows that pressure, temperature, speed, and roller spacing can influence panel integrity and core deformation. Excessive compression can damage the core.
A core gap occurs when core material is missing or misplaced. Delamination occurs when present layers fail to bond.
The operator should inspect a cut sample and verify core dimensions, feed alignment, adhesive distribution, temperature, speed, pressure, and residence time before changing the forming section.
Cutting Length Errors and Out-of-Square Ends
A fixed length error can indicate an offset or cutting delay. An error that increases with panel length can indicate wheel slip, incorrect calibration, or an encoder scaling error.
Correct the Measurement and Cutting Sequence
The operator should measure several panels and calculate cumulative error. The operator should check wheel contact, encoder feedback, cutting response, movement, and speed synchronization.
An out-of-square end may result from an angled panel path, unequal clamping, poor support, cutter misalignment, or an already twisted panel.
Quick Troubleshooting Checklist
- The operator should record the defect and verify the materials.
- The operator should locate the first defective stage.
- The operator should measure the affected dimensions.
- The operator should change only one variable.
- The operator should inspect several samples for new defects.
FAQ
Why Does a Panel Bend After the Final Roll Stand?
Unequal residual strain may remain hidden while the rolls constrain the profile. The panel can curve when the final stand or cutter releases that stress.
Why Does a Joint Fit at One End but Not the Other?
Panel twist, width variation, edge springback, or core displacement can change joint geometry along the panel length.
Why Do Scratches Appear at Regular Intervals?
A rotating component may contact the panel once during each revolution. The operator should compare the spacing with nearby roller circumferences.
Can More Laminating Pressure Fix Delamination?
More pressure does not always improve bonding. Excessive pressure can crush the core, while weak bonding may result from contamination, adhesive delivery, temperature, or residence time.
