As the global renewable energy industry booms, solar photovoltaic (PV) systems have become a mainstream choice for clean power generation. PV support brackets are the core load-bearing components of solar panel mounting systems, directly determining the stability, safety and service life of PV installations. A Photovoltaic Bracket Roll Forming Machine, also known as solar channel roll forming machine or solar mounting strut channel machine, is professional cold roll forming equipment specially designed to mass-produce high-quality PV brackets. It realizes full-automatic production from raw material feeding to finished product output, and has become the preferred production equipment for solar hardware manufacturers worldwide.
Our photovoltaic bracket roll forming machine is engineered to manufacture anti-vibration PV support brackets and C/U-shaped strut channels, which are widely applied in residential solar projects, commercial building PV systems, large-scale solar power plants, agricultural PV facilities and transportation infrastructure.
Main Product Specifications

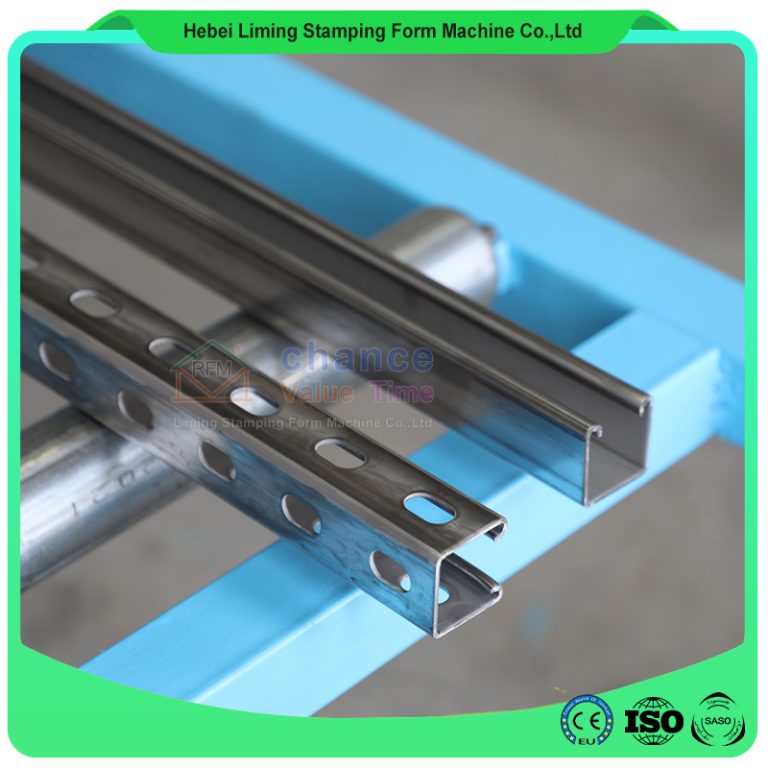

Available Bracket Sizes: Standard sizes include 41×21 mm, 41×41 mm, 41×52 mm, 41×62 mm, 41×82 mm and 61×41 mm. Custom profiles based on customer drawings are supported.
Raw Materials: Mainly galvanized steel strips, cold-rolled steel and carbon steel strips. Material thickness ranges from 1.0 mm to 4.0 mm (common thickness: 1.5–3.0 mm) with excellent corrosion resistance and structural durability.
Line Layout: Standard production area covers 30m (length) × 3m (width), compact structure suitable for most factory workshops.

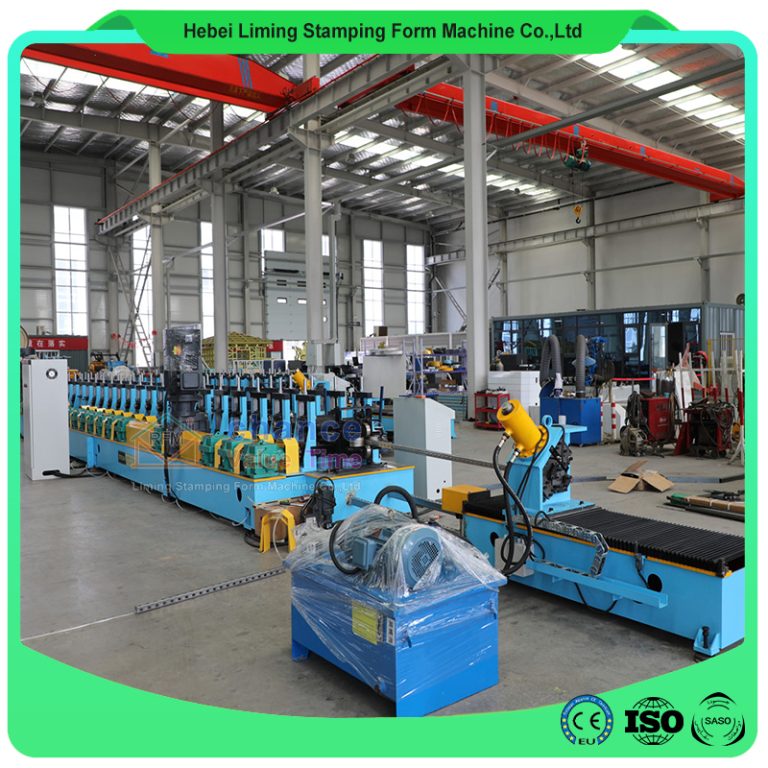

Complete Production Line Composition
The whole production line adopts a streamlined one-piece design, consisting of standard functional units to ensure continuous and stable operation:
Hydraulic Decoiler: Uncoils raw steel strips smoothly, with a load capacity of 5T and inner diameter of 460–520 mm.
Leveling Unit: Equipped with multiple leveling rollers to eliminate material deformation and guarantee flat raw materials.
Servo Feeder & Punching Unit: High-precision servo feeding + independent punching frame, realizing accurate hole punching according to design requirements.

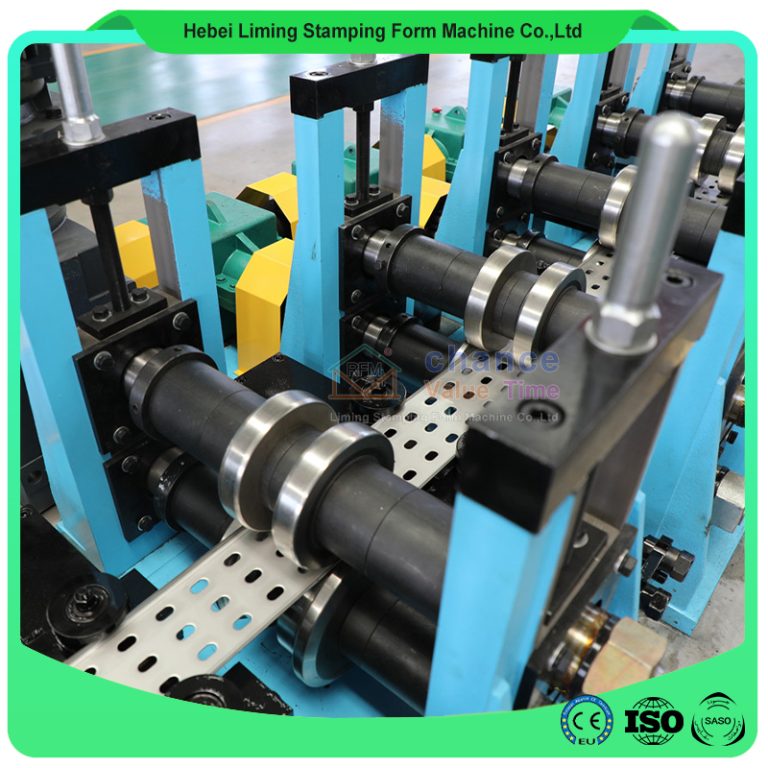

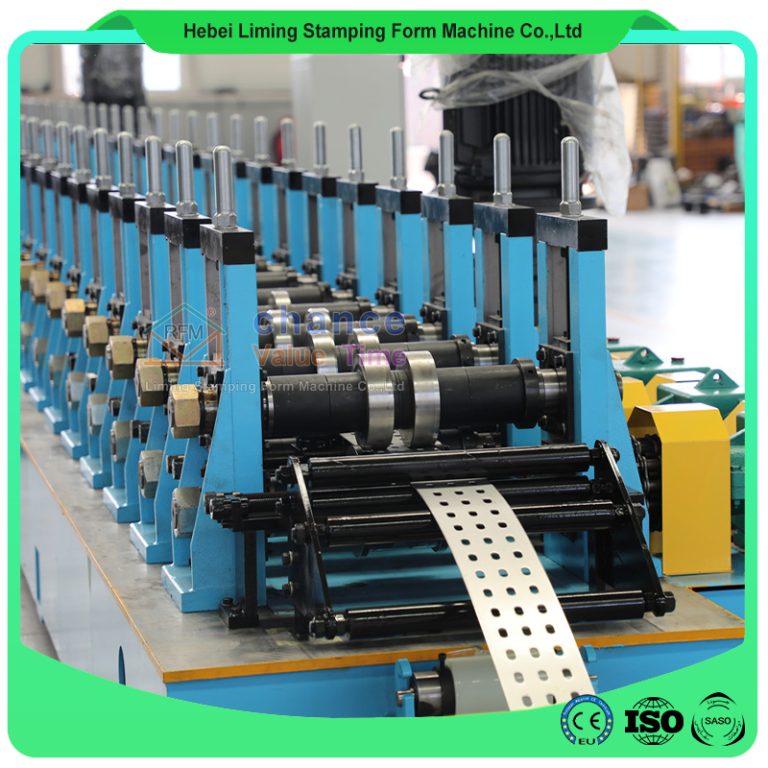

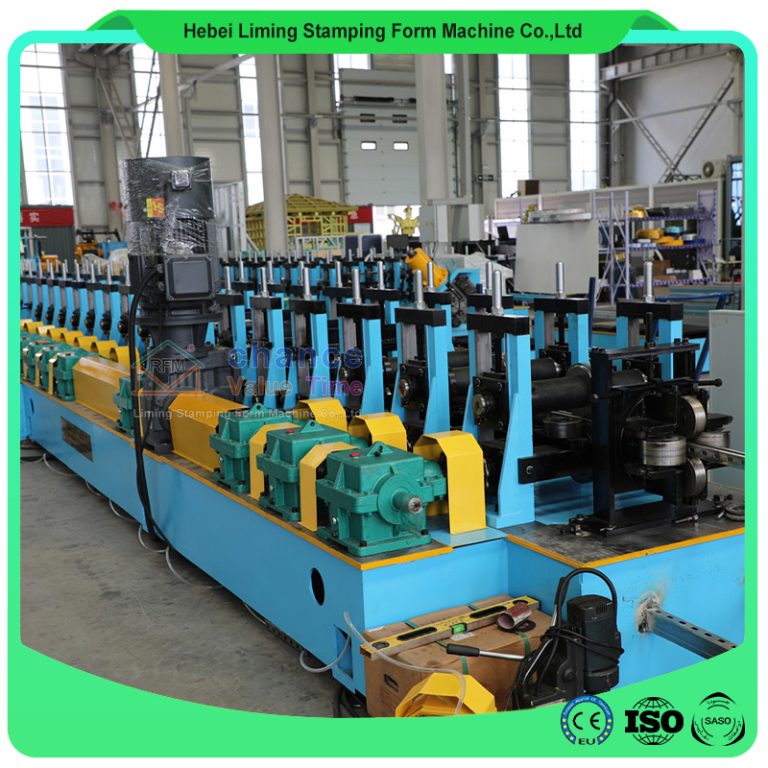

Main Roll Forming Machine: The core forming part with 15–20 roller tracks for gradual bending and shaping.
Hydraulic Cutting Unit: Fixed-length cutting for finished strut channels.
Material Receiving & Optional Automatic Packaging Unit: Collect finished products; the auto packaging module realizes automatic stacking and packaging to save labor.
Electric Control & Hydraulic System: Central control and power support for the entire line.
The photovoltaic bracket roll forming machine follows a mature and optimized cold roll forming workflow, with fully automated operation and no excessive manual intervention:
Decoiling → Leveling → Pinch Feeding → Punching → Roll Forming → Fixed-Length Hydraulic Cutting → Material Receiving → (Optional) Automatic Packaging & Stacking
Each process is linked seamlessly. The whole line runs continuously, avoiding material waste and production interruption, and greatly improving overall production efficiency.
| Working speed | 0-30 m/min（Shear time is not included） | ||
| Pressed plate thickness | 1.5-3.0mm | ||
| Control mode | Panasonic PLC | ||
| Discharging rack | 5T manual decoiler | ||
| Feeding | 2 groups | ||
| Leveling | 7 groups | ||
| Front punching | 2 groups | ||
| Anterior shear | 1 groups | ||
| Number of molding passes | 18 lanes [Electric width adjustment] | ||
| Roll material | Gcr15 quenching of steel after finishing HRC58-62℃，surface chrome plating | ||
| Shaft material and diameter | 45# Steel finishing，Shaft diameter is￠76mm | ||
| Main engine power | 45kw | ||
| Power of hydraulic station | 5.5kw | ||
| Hydraulic pressure | 12Mpa | ||
| Scissors material | Cr12Mov， quench HRC 58-62℃ | ||
| Length tolerance | 3m±1.5mm | ||
| Voltage | 380V, 50HZ,3 phase（According to customer requirements can be adjusted） | ||
| Transmission mode | 1.0 inch double row chain | ||
| Equipment form | Card structure | ||
| Equipment color | Company color | ||
| Equipment size | L*W*H–10.5m*1.5m*1. 2m | ||
| Date of delivery | 60 days | ||
| Payment method | 30% advance charge，70% pay off on delivery | ||
At here, it’s all about giving the clients the best quality products.
