This article mainly explains what is Snap Lock Metal Roofing Machine. What is the purpose and characteristics of the Snap Lock Metal Roofing Machine, and what aspects should be paid attention to when purchasingย Snap Lock Metal Roofing Machine.
What is Snap Lock Metal Roofing Machine?

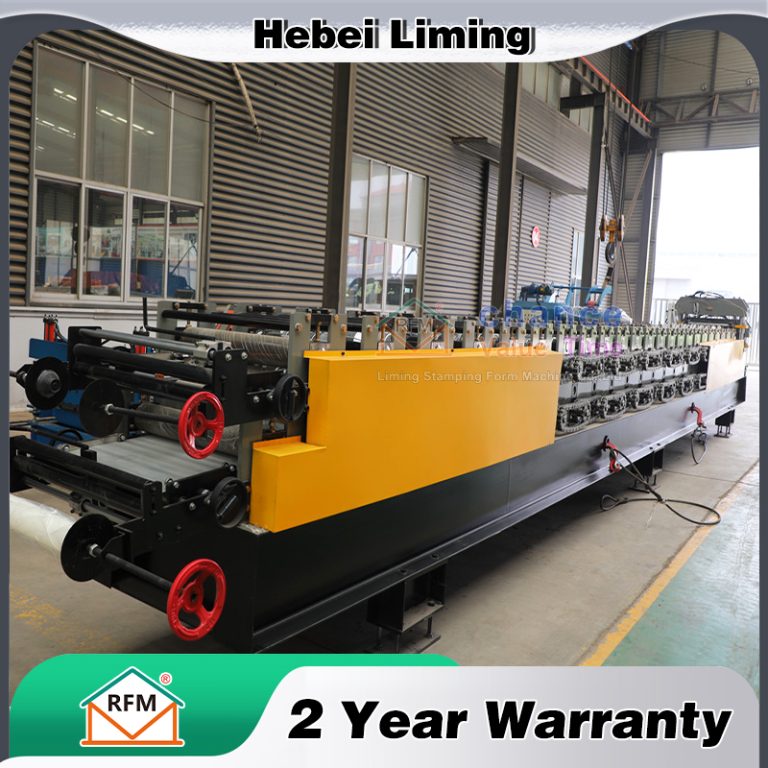

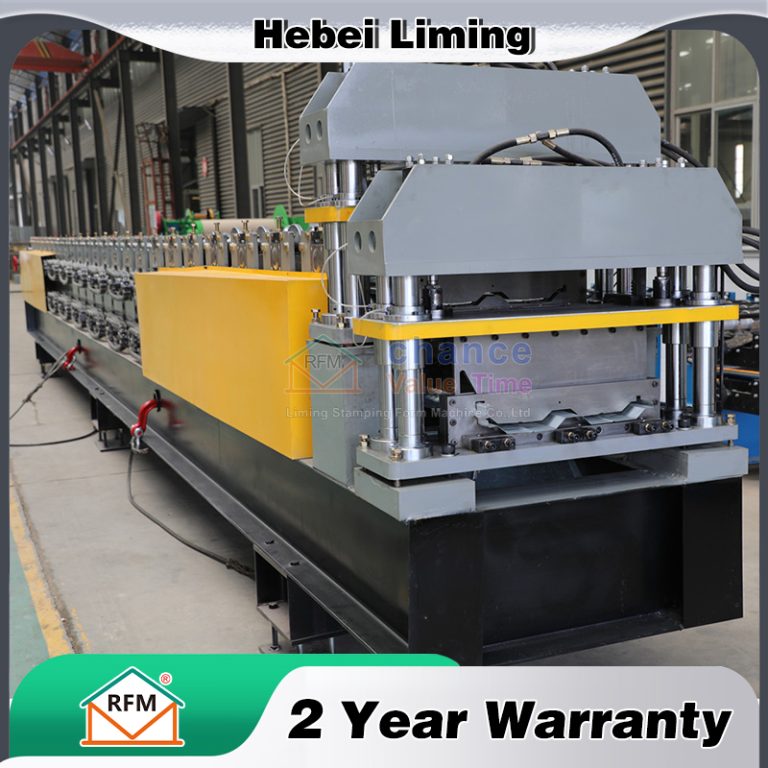

The Snap Lock Metal Roofing Machine is a specialized equipment used for producing upright lock edge metal roof panels. Its core function is to roll the metal coil into a roof panel with a card lock edge structure.
This panel adopts a Snap Lock design, which does not require drilling or welding during installation. It can be quickly assembled through mechanical interlocking between the plate ribs, effectively improving construction efficiency and reducing labor costs.
What is the main purpose of the Snap Lock Metal Roofing Machine?
The metal roof panels produced by this machine are widely used in industrial plants, commercial buildings, residential roofs and other scenarios.
What are the characteristics of the Snap Lock Metal Roofing Machine?
Quick installation: The snap on design simplifies the construction process and shortens the construction period.
Strong wind resistance: By forming a tight connection through mechanical locking edges, the roof system’s wind resistance is enhanced.
Good waterproof performance:ย The combination of lock edge structure and sealant technology can provide reliable water tightness.
What are the key points to pay attention to when purchasing a Snap Lock Metal Roofing Machine?
Technical parameters
Forming plate type: It is necessary to specify the supported rib height (such as 1 inch, 1 3/4 inch, etc.) and plate type design (such as upright locking edge, concealed buckle, etc.).
Material compatibility: Confirm the metal materials (such as aluminum zinc coated steel plate, color coated steel plate, etc.) and thickness range that the equipment can handle.
Machine performance and quality
Molding accuracy: The flatness of the rib and the precision of the locking edge directly affect the installation effect and waterproof performance.
Stability: Evaluate the continuous operation capability of the equipment and the durability of key components such as rollers and transmission systems
After sales service and support
Warranty period: Typically, the equipment comes with a 1-year warranty, and the warranty scope and response time need to be clearly defined.
Technical training: Does the supplier provide operation, maintenance training, and remote technical support.
Cost and Procurement Quantity
Price gradient: There may be tiered pricing based on the purchase quantity (such as 1-4 units, 5-9 units, 10 units or more), and cost-effectiveness needs to be compared.
Transportation and installation: Consider equipment size, weight, and on-site installation and commissioning costs.
Compliance requirements
If used for engineering contracting, it is necessary to ensure that the equipment meets the qualification application requirements of construction enterprises (such as self owned equipment invoices, technical specifications, etc.).
It is recommended to conduct on-site inspections of equipment operation before procurement and refer to mature system designs from industry brands such as Hebei Liming to ensure that the equipment matches the requirements of the roofing project.
For more professional knowledge about machines, please contact Hebei Liming Stamping Form Machine Co., Ltd
Website: www.lmrfm.comย ย ย Email: admin@chinaformingmachine.com
Whatsapp:+8617761521505
| NO. | Item | Specification |
| Material | Raw material | Galvanized steel or PPGI |
| Thickness | 0.3mmโ0.8 mm | |
| Decoiler | Operation | Manual or Hydraulic |
| Weight capacity | 3T 5T 7T 10T | |
| Machine | Roller station | 14-22 or depend on customer’ drawing |
| Shaft diameter | 70mmโ80 mm | |
| Machine body frame | 350H steel | |
| Roller material | Cr12 | |
| Machine size | About 6*1.5*1.2 m | |
| Machine weight | 4 – 6 tons | |
| Machine color | As customer need | |
| Working speed | 12-60 m/min | |
| Cutter | Hardness | 50-65 HRC |
| Cutting tolerance | ยฑ 1mm | |
| Material | Cr12 | |
| Operate | Hydraulic cutting | |
| Power | Main motor | 7.5 KW |
| Pump motor for cutter | 5.5 KW | |
| Voltage | 380V/50HZ, 3P or Customized as customer’ request |
1. A machine doesn't just provide a few photos to prove what they can produce
2. A machine should have a complete production and assembly system photos and videos. When choosing a company with a factory, it is necessary to ensure that the company has a complete after-sales service system.
Our company's engineers have studied in well-known European cold bending companies and have great advantages in machine design and R&D and manufacturing.
Generally speaking, the machine takes about 40 days to complete, if you need a machine urgently, we can make it urgently, because I have a large number of spare parts.
Because we insist that every factory should put quality first, we make the machines more automated, more reliable and accurate, and have a longer service life.
The equipment can be used for nearly 20 years, and we provide lifetime after-sales service.
Product quality is the ultimate, the biggest after-sales service is service, 26 years of production experience, to be a service company that you have the strength to guarantee
1. Give me the dimension drawing and thickness, it is very important.
2. If you have requirements for production speed, power, voltage and brand, please explain in advance.
3. If you don't have your own outline drawing, we can recommend some models according to your local market standard.
