Hebei Liming Strut Channel Unistrut Channel making Machine Strut profile Machine Manufacturer

workflow

1. Material release: Raw materials (usually metal sheets) are released from the material roll.
2. Leveling: Flatten the boards after feeding to ensure their flatness.
3. Feeding: Controlled by a servo system, the sheet metal is accurately fed into the forming machine.
4. Punching: Punching is performed on the board as needed.
5. Forming: The sheet is formed into the desired C-shaped or other shaped photovoltaic bracket through rolling.
6. Cutting: Cut the formed bracket according to the set length.
7. Discharge: Send the finished bracket out of the equipment and prepare for the next step of packaging or processing.

Product Material

Common materials include low-carbon steel, galvanized steel, and stainless steel. Some high-end equipment can handle thicker sheets, such as 1-3mm thickness.

Product Size

The Unitstrut C Channel Machine size can be customized according to customer needs, such as sheet width of 70-150mm, material thickness of 1.5, 2.0, 2.5mm, etc.

Production Speed

The fully automatic solar photovoltaic bracket forming machine speed is usually between 3-15 meters per minute, depending on the model and configuration of the equipment.

Production

The output depends on production speed, equipment efficiency, and operating time, usually measured in meters per hour or tons per hour.

 The various components of the machine

1. Material release device: used for storing and releasing raw materials.
2. Leveling device: perform leveling treatment on the board.
3. Feeding system: The conveying of the sheet is controlled by a servo motor.

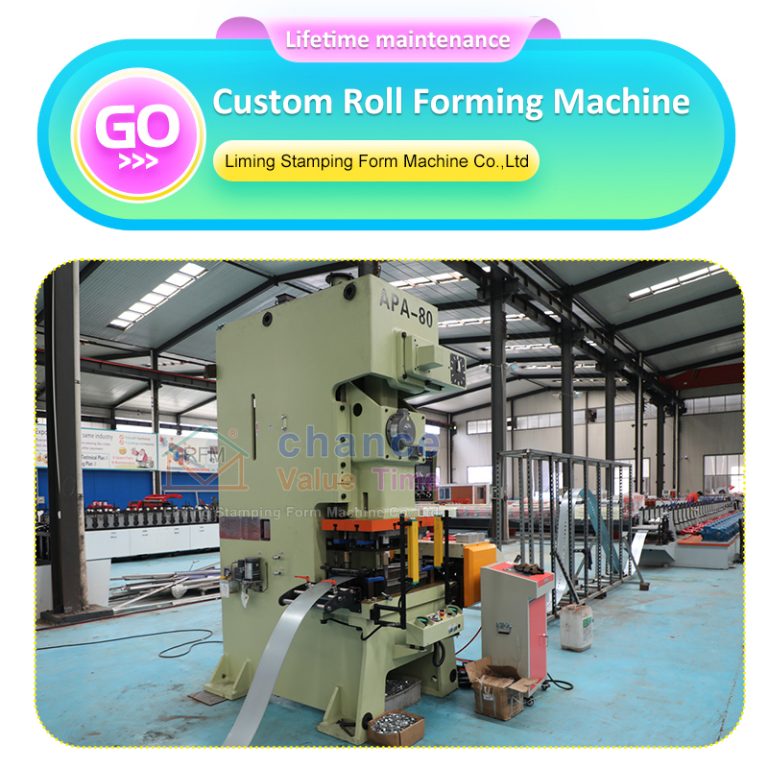

4. Punching device: used for punching holes on the board.

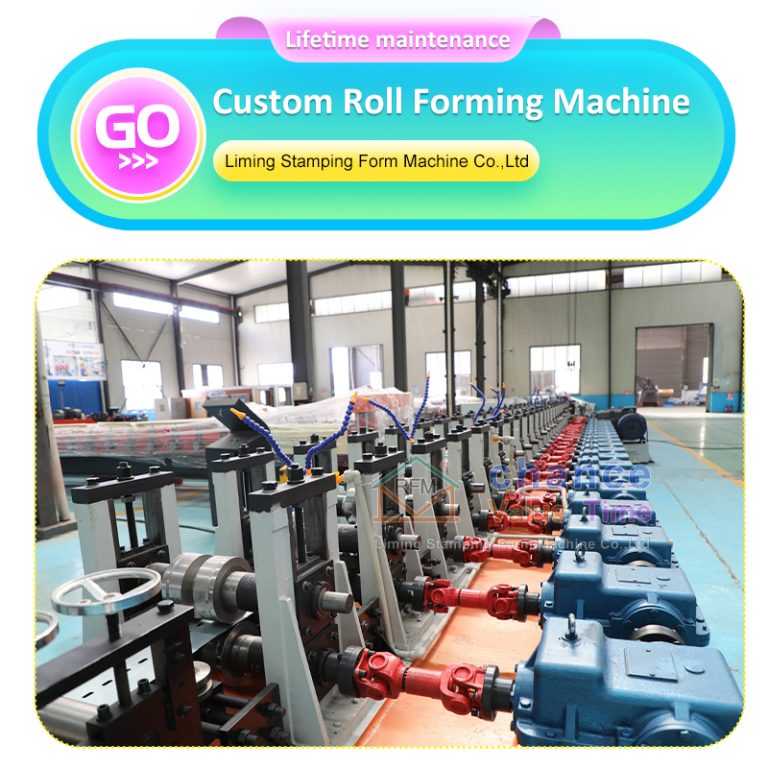

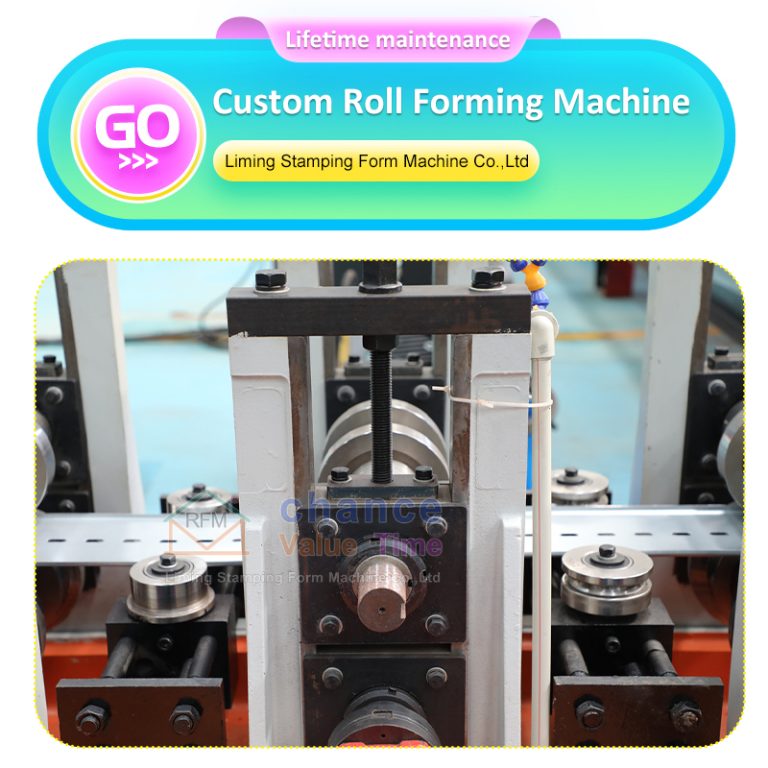

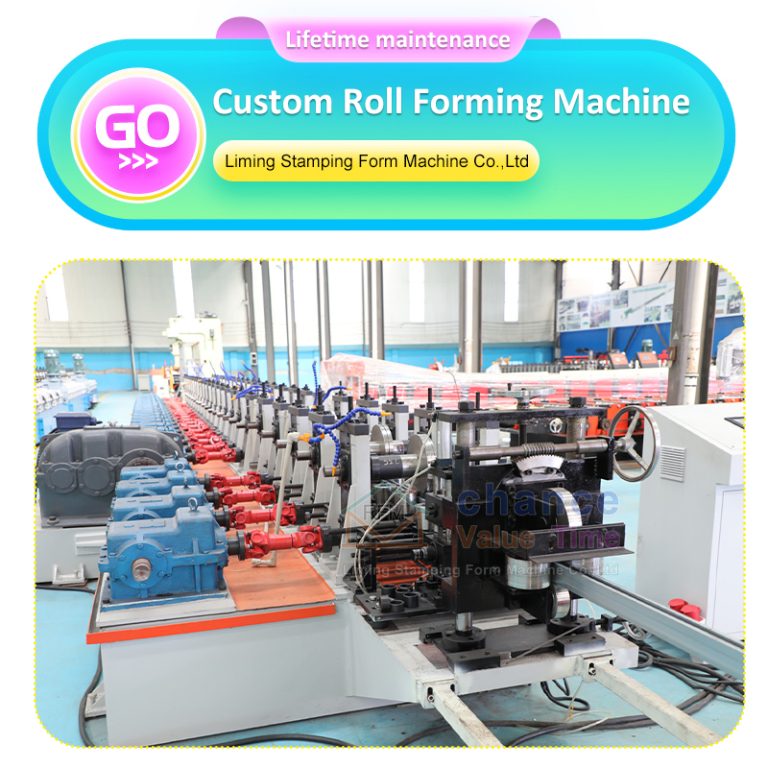

5. Forming unit: composed of multiple rolling rolls, responsible for forming the sheet metal.

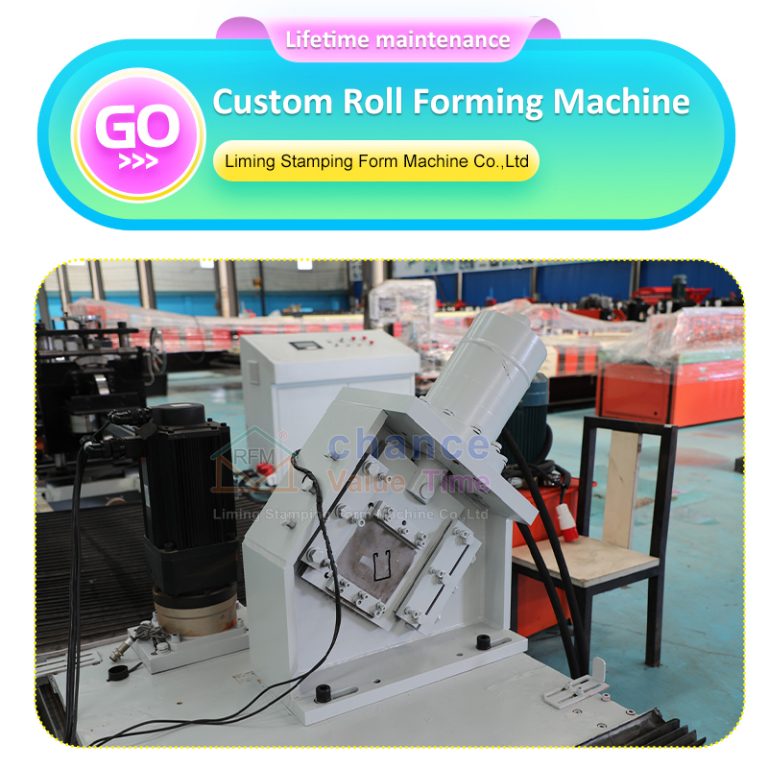

6. Cutting device: Cut the formed bracket according to the set length.
7. Discharge device: Send finished products out of the equipment.
8. Control system: PLC control is usually used to achieve automated operation of equipment.
9. Transmission system: including gearbox, chain, etc., used to transmit power.
10. Auxiliary equipment: such as hydraulic systems, cooling systems, etc., to ensure stable operation of the equipment.

The Unitstrut C Channel Machine has the characteristics of high efficiency, high precision, and high degree of automation, which can meet the large demand for brackets in the solar photovoltaic industry.
